Plastic recycling unit

PETfor bottlesmetal separation

Overview

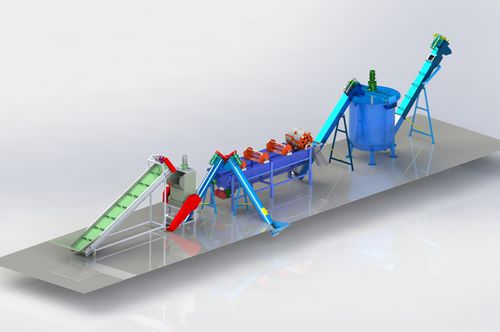

PET bottle crushing and recycling line designed to crush, wash and separate labels and caps to produce pure, dry, uniform-size PET flakes. The series supports customized configurations to address varied waste PET specifications and material characteristics arising from diverse recycling sources.

Application
Suitable for recycling a wide range of PET bottles including mineral water and beverage bottles, detergent and household chemical containers, snack and food packaging, pharmaceutical bottles, and industrial PET containers and tubes.

Suggested recycling line machines for reference

• Bale opener: break up compressed PET bottle bales
• Disc sorting machine: remove stones, heavy objects and dislodged caps
• Manual sorting platform (optional): manual sorting by bottle type and color
• Metal detection and separation equipment: detect and remove metal contaminants
• Pre-washing machine: remove residual liquids and loose contaminants
• Shredder: wet shredding to reduce bottle size and assist cleaning
• Spiral washing machine: wash and convey materials
• Secondary shredder: further size reduction and washing
• Spiral cleaning machine: continued washing and transfer
• Centrifugal dehydrator: dewater and partially dry flakes
• Debarring system: remove labels and adhered contaminants
• High-temperature cooker: high-temperature treatment to remove glue and oils
• Rinsing and sedimentation tank: separate floating labels and caps, further clean settled flakes
• Secondary centrifugal dehydrator: final dehydration of flakes
• Label removal system: remove residual labels and contaminants
• Fully automatic bagging system: fill finished product into storage or shipping bags

Features / Technical specifications

• Product: PET Bottle Recycling Line
• Function: crush, wash, separate labels and caps, produce pure dry uniform-size PET flakes
• Suitable materials: waste PET bottles from multiple industries and applications
• Typical processes: bale opening, sorting, washing, shredding, high-temperature cooking, rinsing, dehydration, label removal, automatic bagging
• Customization: line layout and individual machines can be customized to match production requirements
