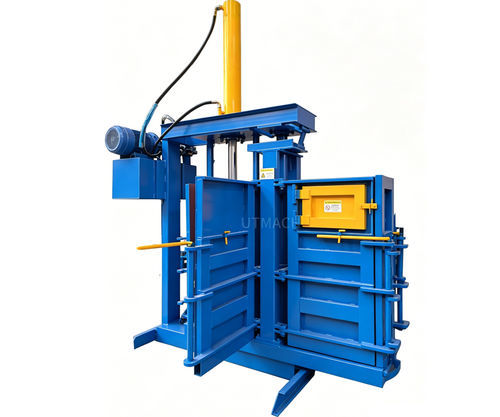

Cardboard baling press DB30TV-2BOXES

for paperfor plasticsfor bottles

Product overview
The UTMACH dual-chamber (twin box) vertical hydraulic baler is designed for continuous alternating operation: while one chamber is being loaded, the other compresses or secures the bale. Models available: DB30TV-2BOXES and DB60TV-2BOXES. Intended for industrial recycling and waste handling of fibrous and plastic materials.

Key advantages

• Continuous dual-chamber operation enabling uninterrupted feeding and baling.
• Improved throughput compared with single-chamber vertical balers.
• Hydraulic compression reduces manual handling and simplifies operation.
• High compression ratio lowers storage volume and reduces transport costs.
• Processes a wide range of materials: cardboard, waste paper, plastic film, PET bottles, woven bags, textiles, foam, etc.
• Robust steel construction and stable hydraulic components for long service life.

Applications

• Recycling centers
• Warehouses and logistics centers
• Supermarkets and retail distribution
• Printing and packaging factories
• Plastic and textile recycling facilities
• Manufacturing plants and waste management sites

Specification
Model | Pressure (ton) | Motor (kW) | Bale size (mm) | Bale weight (kg) | Dimension (mm) | Net weight (kg)
DB30TV-2BOXES | 30 | 11 | 700×400×350–700 | 40–60 | 2900×1000×4500 | 2500
DB60TV-2BOXES | 60 | 15 | 700×500×350–700 | 50–80 | 2900×1000×4500 | 2700

Note

• Electrical supply voltage can be configured to customer requirements.
• Throughput and bale weight depend on material type and bale size settings.

Technical features

• Brand: UTMACH
• Product type: Dual-chamber (twin box) vertical hydraulic baler
• Available models: DB30TV-2BOXES, DB60TV-2BOXES
• Compression pressure: 30 t (DB30TV-2BOXES), 60 t (DB60TV-2BOXES)
• Motor power: 11 kW (DB30TV), 15 kW (DB60TV)
• Adjustable bale size: 700 × 400 × 350–700 mm (DB30TV), 700 × 500 × 350–700 mm (DB60TV)
• Approx. bale weight: 40–60 kg (DB30TV), 50–80 kg (DB60TV)
• Overall dimensions (L×W×H): 2900 × 1000 × 4500 mm (both models)
• Net weight: 2500 kg (DB30TV-2BOXES), 2700 kg (DB60TV-2BOXES)
• Materials: cardboard, waste paper, plastic film, PET bottles, woven bags, textiles, foam, etc.
• Construction: heavy-duty steel frame with stable hydraulic system
• Operation: alternating continuous operation of two chambers for uninterrupted feeding and baling
