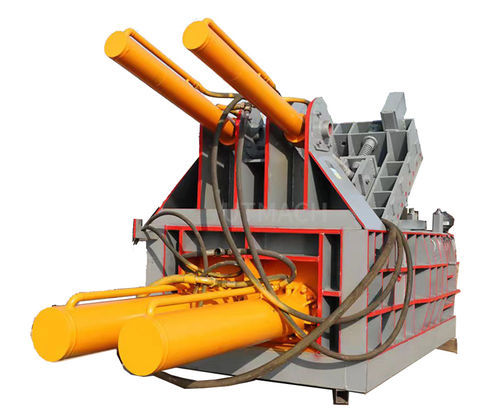

Grinding dust briquette press DB series

chipmetal chipfor waste

Product Introduction
The metal briquetting machine is a hydraulic compression system designed to compact metal chips, shavings, turnings and metal powders into high-density briquettes. It forms cylindrical, square or hexagonal briquettes to facilitate storage, transport and recycling. Suitable for aluminum, copper, steel, cast iron, stainless steel, magnesium, titanium and other metal scraps, the machine is used in steel mills, foundries, CNC workshops, automotive and aluminum plants and metal recycling facilities. The hydraulic system delivers stable high pressure and supports automatic feeding and discharge. Custom briquette sizes and production capacities are available on request.

Advantages

• Increase recycling value: Converts loose metal chips into dense briquettes that improve melting and recovery efficiency.
• Reduce storage and transport costs: Compact briquettes lower waste volume and logistics expenses.
• Minimize oxidation loss: Dense briquettes limit oxidation during melting and improve material yield.
• High automation: Options for automatic feeding, compression and briquette discharge increase productivity.
• Wide material compatibility: Effective with aluminum, copper, steel, cast iron, stainless steel, magnesium, titanium and other metal scraps.
• Robust design: Constructed with high-strength steel and quality hydraulic components for continuous industrial operation.

Applications
Metal recycling industry, CNC machining workshops, Automotive manufacturing, Foundries, Steel mills, Aluminum processing plants, Copper processing factories, Hardware manufacturing, Smelting industry, Industrial waste recycling plants

Specifications
Model | Pressure (ton) | Motor (kW) | Bale Size (mm) | Chamber Size (mm)
DB100TH-M | 100 | 11/15 | 200×200 | 1000*600*500
DB125TH-M | 125 | 15/20 | 250×250 | 1200*700*600
DB135TH-M | 135 | 18.5/25 | 600×240 | 1400*600*600
DB160TH-M | 160 | 22/30 | 350×350 | 1600*1000*700
DB200TH-M | 200 | 30/40 | 400×400 | 1600*1200*800
DB250TH-M | 250 | 45/60 | 400×400 | 2000*1400*1000
DB315TH-M | 315 | 75/100 | 600×600 | 2600*1750*1200
DB400TH-M | 400 | 2*45/120 | 600×600 | 2600*2000*1200

Notes

• Power supply voltage can be selected according to customer requirements.
• Actual capacity depends on material composition and desired briquette size.

Technical specifications

• DB100TH-M — Pressure: 100 ton; Motor: 11/15 kW; Bale Size: 200×200 mm; Chamber Size: 1000*600*500 mm
• DB125TH-M — Pressure: 125 ton; Motor: 15/20 kW; Bale Size: 250×250 mm; Chamber Size: 1200*700*600 mm
• DB135TH-M — Pressure: 135 ton; Motor: 18.5/25 kW; Bale Size: 600×240 mm; Chamber Size: 1400*600*600 mm
• DB160TH-M — Pressure: 160 ton; Motor: 22/30 kW; Bale Size: 350×350 mm; Chamber Size: 1600*1000*700 mm
• DB200TH-M — Pressure: 200 ton; Motor: 30/40 kW; Bale Size: 400×400 mm; Chamber Size: 1600*1200*800 mm
• DB250TH-M — Pressure: 250 ton; Motor: 45/60 kW; Bale Size: 400×400 mm; Chamber Size: 2000*1400*1000 mm
• DB315TH-M — Pressure: 315 ton; Motor: 75/100 kW; Bale Size: 600×600 mm; Chamber Size: 2600*1750*1200 mm
• DB400TH-M — Pressure: 400 ton; Motor: 2*45/120 kW; Bale Size: 600×600 mm; Chamber Size: 2600*2000*1200 mm
• Suitable materials: aluminum chips, copper shavings, steel chips, cast iron chips, stainless steel scrap, magnesium chips, titanium chips and other metal scraps.
• Operation: hydraulic compression with options for automatic feeding, compression and briquette discharge.
