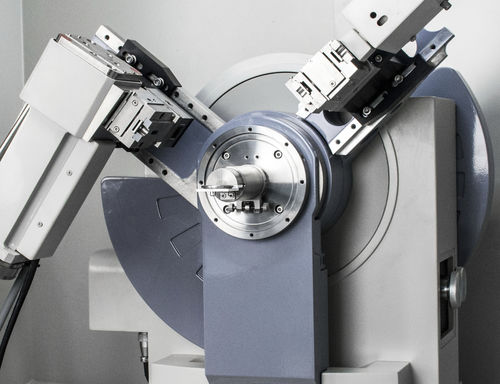

X-ray diffractometer JF-5

single crystal

JF-5large frequency x-ray orientation instrument Function This device adopts of x-ray diffraction principle, and it is the precision instrument consists of optical, mechanical and electrical. It can quickly measured the all kinds of crystal plane orientation and matched with slicing, polishing etc processing equipment. Features 1.Takes use of advanced high frequency and high voltage power, enhanced the strength of the x-ray, special designed for the crystal whose peak valve is very weak. Such as diamond. 2.The sample holder adopts of automatic rotary term, convenient for crystal four points measurement, and it is easy to be observed the rotary angle during processing, avoid of the error caused by manual process. 3.Cancel the process of hand wheel, and takes use of complete closed type, only by light touching of screen or foot shutter and realize the wafer calibration and crystal measurement. 4.Takes use of PLC control technical, high automatic and low maintenance, stability is good 5.With the data printing function, USB connection, and it can export EXCEL and load in computer. 6.Modular circuit design, easy maintenance, maintenance, repair. 7.According to the measured sample, to make the customized various machine and fixture, ensure measurement accuracy and ease of use. 8.It can automatic measure the wafer or ingot and suitable for each process angle check, improve the qualified rate.
