FLAME-RETARDING COVERING TYPE BP-H

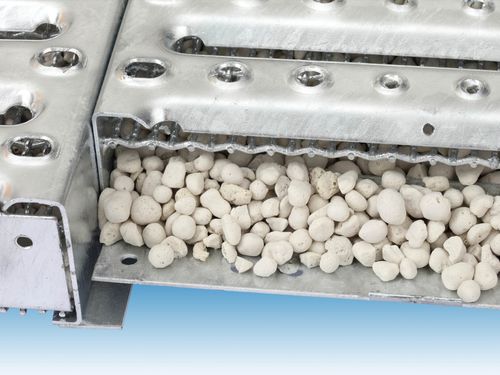

In order to smother the flames in the catch pans in the case of a possible fire in a transformer, the Lichtgitter perforated metal plank type BP-H was developed with welded woven wire mesh and a foam glass granulate filling. The suitability of this cover system has been demonstrated in several in-house and external tests.
CHARACTERISTICS
better and quicker control of the collecting pan
shorter switch-off period of the transformer
lower assembly and disassembly time
optimum flow time speed of oil, tempering and rain water
the filled loose material (glass foam granulate) is moisture resistant, fire-proof and stable to temperatures up to 600°. It is awarded for its environmental friendliness.
quick possibility to remove the liquid out of the collection pan
this system would stifle possibly beginning fire
serial production – short delivery times
high safety level during maintenance operations
existing installations can be rebuild without problems
the covering is especially suited for locations where in case of an accident the rescue service cannot be immediately at site
