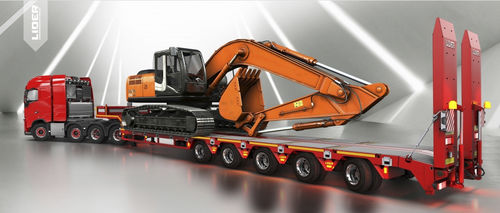

Low-loader semi-trailer

5-axlewith inertia brakingextendable

5 axels lowbed semi trailers using for special transport for 40-90 Tons capacity wth it’s working for in confined areas Optional Lider trailer can add extandable platform. LIDER TRAILER manufacturing lowbed semi trailer designed according to customer loads and their request dimensions · Hydraulic steering systems ( optional ) · Self Steering axle systems ( Lider Axles ) · Extendable ( optional ) · Different suspension systems ( Mechanical –Air) · Manufacturing with special size and type according to load · Custom design · Manufacturing according to your work and transport •Axles : 5 × 12- 14- 16 Tons •Wheels : 245/70 – 17,5 235/70 – 17,5 245/75 – 19,5 235/75 – 19,5 •Air Suspension : 35-55 Tons •Mechanical suspension : 55-85 Tons •Tare Weight ±%3 : 10500-18.000 Kg •External Length : 11.5000 – 15.000 mm •Platform Length : 8000 – 13.500 mm •Platform Width : 2500 + 600 mm - 3000 + 600 mm ( Width / Side Extensions ) •Platform Height : 850 mm – 1150 mm •Extendable Platform : +3000 mm / + 8000 mm •EBS Brake systems •ABS Brake systems •Single – Double (Foldable) hydroulic ramp systems •Colors : Customer Request RAL Codes
