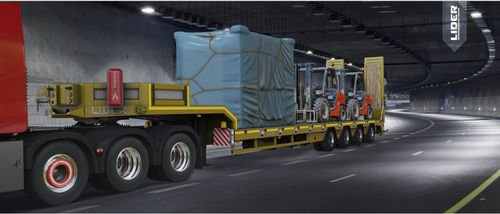

Low-loader semi-trailer

4-axlewith inertia brakingextendable

4 axels lowbed semi trailers using for special transport for 50-70 Tons capacity wth ity working for in confined areas From 3 to 6 axles, these trailers also have a hydraulic drive system that is controlled remotely or by truck. LIDER TRAILER manufacturing lowbed semi trailer designed according to customer loads and their request dimensions · Hydraulic steering systems ( optional ) · Self Steering axle systems ( Lider Axles ) · Extendable ( optional ) · Different suspension systems ( Mechanical –Air) · Manufacturing with special size and type according to load · Custom design · Manufacturing according to your work and transport •Axles : 4 × 14- 16 Tons •Wheels : 245/70 – 17,5 235/75 – 19,5 275/70 – 22,5 12 R – 22,5 •Air Suspension : 35-55 Tons •Mechanical Suspension : 55-70 Tons •Tare Weight ±%3 : 10500-17.000 Kg •External Length : 11.500 – 15.000 mm •Platform Length : 8500 – 11.500 mm •Platform Width : 2500 + 600 mm - 3000 + 600 mm ( Width / Side Extensions ) •Platform Height : 850 mm – 1100 mm •Extendable Platform : +3000 mm / + 7000 mm •EBS Brake systems •ABS Brake systems •Single – Double (Foldable) hydroulic ramp systems •Colors : Customer Request RAL Codes
