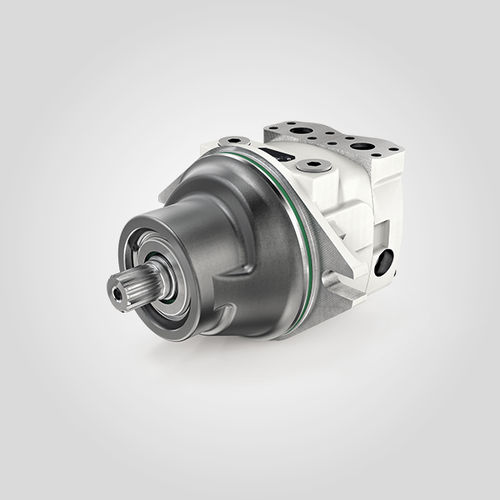

Axial piston hydraulic motor FMF
fixed-displacementcompacthigh-pressure

axial piston hydraulic motor
axial piston hydraulic motor
axial piston hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
axial piston
Other characteristics
fixed-displacement, compact, high-pressure, open circuit, closed circuit
Pressure

350 bar, 420 bar (5,076 psi)

Min.: 0 bar (0 psi)

Max.: 450 bar (6,527 psi)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 5,180 rpm (32,546.9 rad.min-1)

Torque

Min.: 131 Nm (96.62 ft.lb)

Max.: 1,349 Nm (994.97 ft.lb)

Displacement

Min.: 25 cm³ (1 US fl oz)

Max.: 257 cm³ (9 US fl oz)

Description

The constant motors of the FMF series have impressed for years with their compact and sturdy design. Further, the nominal sizes are finely stepped. Hydraulic component - Axial piston motor Circulation - Closed / open Adjustability - constant Nominal sizes - 100 / 125 / 165 / 25 / 250 / 32 / 45 / 58 / 64 / 90 Areas of application - Special vehicles The Liebherr axial piston motor FMF series is developed for the open and closed circuit in swash plate design. The fixed plug-in motors are available in finely graded nominal sizes ranging from 25 to 250 cm³. The nominal pressure is 350 or 420 bar and maximum pressure 380 or 450 bar, depending on its size. Special Features: Various flushing and pressure valves for the open and closed circuit are integrated into the port plate. Speed sensor or preparation for speed sensor available on request.

Catalogs
