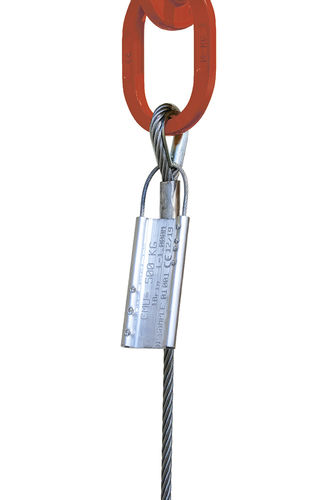

Wire rope sling 817galvanized
Add to favorites
Compare this product
Characteristics
- Type
- wire rope
- Material
- galvanized
- Load capacity
Min.: 500 kg
(1,102.3 lb)Max.: 30,000 kg
(66,138.7 lb)
Description
Advantages
- Safety factor: 5
- Individual marking and traceability
- Standard : EN13414-1
- Instructions : NI 11002
- Delivery with EC declaration
Technical characteristics
- Galvanized wire rope grade 1770N/mm² or 1960N/mm²
- Special lengths and assemblies on request
- Stainless steel sling : reference 8421
Composition
- 1 head ring 9351
- 1 wire rope length 8022 or 8736
- 2 protective thimbles 1300
- 2 aluminium sleeves 231
- 1 eye sling hook 13014
