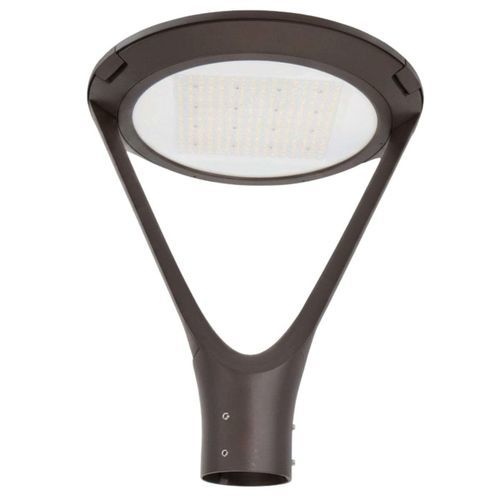

LED urban light LLS-X-PT1-125A-CC-BZ

electricaluminium

Product Overview
This adjustable LED post top light offers selectable outputs of 76W, 105W or 125W and color temperatures of 3000K, 4000K or 5000K. Designed for pole-mounted post-top installations, it provides 11,020 to 18,125 lumens with a Type V distribution.

Core Performance and Output
Selectable wattage sets the lumen output to 11,020 (76W), 15,225 (105W) or 18,125 (125W). Efficacy is rated at 145 lm/W. Type V optics deliver a symmetrical distribution around the pole for uniform area illumination.

Key Features
Brand: LED Lighting Supply
Watts: 76 | 105 | 125
Lumens: 11,020 | 15,225 | 18,125
Lumens per Watt: 145
Replaces: 400W Metal Halide
Voltage: 100–277V
Color Temperature: 3000K / 4000K / 5000K
CRI: 70+
Beam Angle (Std): Type V
Optics: Tempered glass lens
Lifespan: 50,000 L70 hours
Mounting: 3 in pole
EPA Rating: 2
Fixture Color: Bronze
Frequency: 50/60 Hz
Power Factor: > 0.92

Durable Construction
Housing is die-cast aluminum with a bronze finish. Rated IP65 for outdoor use and equipped with 10kV surge protection. Operating temperature range: -22°F to 113°F (-30°C to 45°C). Certified UL and rebate eligible. Warranty: 5 years.

Measurements
Dimensions (in): 16.77 D x 20.75 H

Features / Accessories

• Color adjustable (3000K/4000K/5000K)
• Wattage adjustable (76W / 105W / 125W)

Where This Product Fits Best

• Post top lighting
• Pedestrian area lighting
• Decorative site lighting
• Campus lighting
• Park lighting
• Municipal lighting
• Courtyard lighting
• Pathway lighting

Installation and Long-Term Use
Operates on 100–277V, 50/60 Hz with power factor > 0.92. Requires a 3 in pole mounting. EPA rating of 2 for wind loading on pole-mounted installations. UL listed and rebate eligible where applicable.

Longevity and Reliability
Rated for 50,000 L70 hours. IP65 enclosure and integrated 10kV surge protection support outdoor durability across the specified temperature range. Backed by a 5-year warranty.

Technical specifications

• Model / Series: LLS-X-PT1 (series identifier)
• Available wattages: 76W, 105W, 125W
• Available lumen outputs: 11,020; 15,225; 18,125
• Color temperatures: 3000K, 4000K, 5000K
• Optics: Type V distribution, tempered glass lens
• Housing: Die-cast aluminum, bronze finish
• IP Rating: IP65
• Surge protection: 10kV
• Operating temperature: -22°F to 113°F (-30°C to 45°C)
• Voltage: 100–277V, 50/60 Hz
• Power factor: > 0.92
• CRI: 70+
• L70 lifespan: 50,000 hours
• Mounting: 3 in pole
• EPA: 2
• Certifications: UL listed, rebate eligible
• Warranty: 5 years
