Hose crimping machine P70SCC

hydraulic hoseautomatichydraulic

Product overview

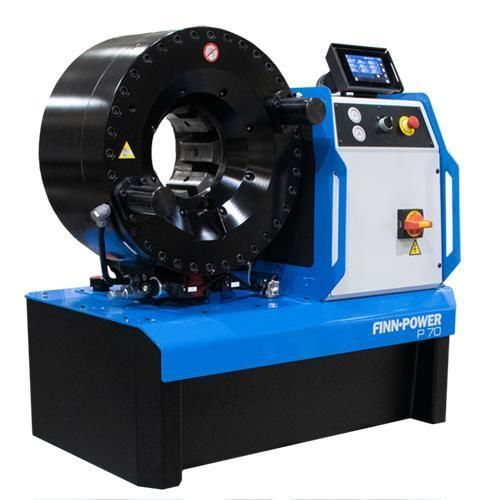

P70SCC is the largest tabletop crimping machine in its range, offering increased power and a wider opening to process heavy-duty fittings and larger industrial hoses. The unit is designed for workshop environments and small to mid‑range industrial hose assemblies.

Short designation
Crimping machine for workshop use

Features

• Control: SCC (5" touchscreen)
• Models: single model available (P70SCC)
• Standard features: adapter dies (part no 704631); mirror (part no 720878)
• Options: foot pedal (part no 691563); electric backstop; mechanical back stop device; tool base with QuickChange-tool for P32 dies, 18 slots (part no 720198); tool base with QuickChange-tool for P32 dies, 8 slots for 140 dies / 6 slots for 32 dies (part no 719124); tool rack with QuickChange-tool (part no 692740); QuickChange-tool (part no 701049)

Die Set 145-series
Die Set No | D (mm) | L (mm) | Crimp. range (mm)
18860/84/120 | 84 | 120 | 84.0-92.0
18860/92/120 | 92 | 120 | 92.0-100.0
18860/100/120 | 100 | 120 | 100.0-108.0
18860/108/120 | 108 | 120 | 108.0-116.0
18860/116/120 | 116 | 120 | 116.0-124.0

Die Set 140-series
Die Set No | D (mm) | L (mm) | Crimp. range (mm)
18860/84/110 | 84 | 110 | 84.0-92.0
18860/92/110 | 92 | 110 | 92.0-100.0
18860/100/110 | 100 | 110 | 100.0-108.0
18860/108/110 | 108 | 110 | 108.0-116.0
18860/116/110 | 116 | 110 | 116.0-124.0

Die Set 32-series
Die Set No | D (mm) | L (mm) | Crimp. range (mm)
18506/10 | 10 | 55 | 10.0-12.0
18506/12 | 12 | 55 | 12.0-14.0
18506/14 | 14 | 55 | 14.0-16.0
18506/16 | 16 | 55 | 16.0-19.0
18212/19 | 19 | 55 | 19.0-22.0
18506/22 | 22 | 70 | 22.0-26.0
18506/26 | 26 | 70 | 26.0-30.0
18506/30 | 30 | 70 | 30.0-34.0
18506/34 | 34 | 75 | 34.0-39.0
18506/39 | 39 | 75 | 39.0-45.0
18506/45 | 45 | 90 | 45.0-51.0
18506/51 | 51 | 90 | 51.0-57.0
18506/57 | 57 | 100 | 57.0-63.0
18506/63/110 | 63 | 110 | 63.0-69.0
18506/69/110 | 69 | 110 | 69.0-75.0
18506/74/110 | 74 | 110 | 74.0-80.0
18506/78/110 | 78 | 110 | 78.0-87.0

Notes
* According to the fitting. 1) With standard dies. Crimping range can be increased with special dies. 2) Theoretical with 10 mm cycle. 3) Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.

Technical specifications

• Max crimping dia (mm/inch): 124 / 4.88
• Max crimping force: 4000 kN (400 tonnage)
• Cycle time (10 mm): 6.8 s (theoretical)
• Hydraulic hose size (inch): 3 *
• Industrial hose size (inch): 4.88 *
• Die set series: 32 / 140
• Max opening (mm): +60
• Max opening without dies (mm): 200
• Master die D/L (mm): 140 / 155
• Master die D/L (inch): 5.52 - 6.1
• Motor Power: 5.5 kW / 7.5 HP
• Oil tank volume: 80 l
• Dimensions (LxWxH) mm: 912 x 559 x 907
• Dimensions (LxWxH) inch: 35.9 x 22 x 35.7
• Weight: 461 kg / 1014 lbs
