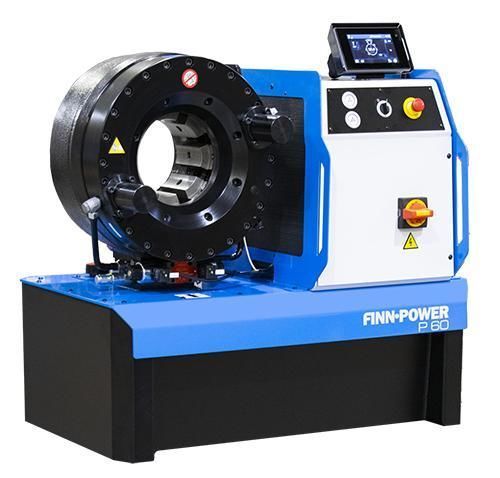

Hose crimping machine P60

automatichydraulicelectro-hydraulic

Overview
The P60 is a workshop crimping machine designed for large camlock-style couplings and for small to mid-range industrial and hydraulic hoses. It features an increased opening diameter and automatic hydraulic shut-off to reduce energy use and noise when idle. SCC control provides connectivity and a visual interface with step crimping as standard; MS is the basic control option.

Control and key features

• Control: MS
• Control: SCC (5-inch touchscreen)
• Automatic hydraulic shut-off when idle
• Step crimping function (SCC)
• Suitable for camlock-style couplings and industrial hoses
• No alternative models available

Standard features (MS)

• Adapter dies for 32-series dies (part no 402604)
• Mechanical back stop device (part no 720194)

Standard features (SCC)

• Adapter dies for 32-series dies (part no 402604)

Options (MS)

• Foot pedal (part no 676906)
• Mirror (part no 720200)
• Tool base with QuickChange-tool for P32 dies, 18 slots (part no 720198)
• Tool base with QuickChange-tool for P32 dies, 8 slots for 140 dies / 6 slots for 32 dies (part no 719124)
• Tool rack with QuickChange-tool (part no 692740)
• QuickChange-tool for 32-series dies (part no 701049)

Options (SCC)

• Foot pedal (part no 691563)
• Mirror (part no 720200)
• Mechanical back stop device (part no 720194)
• Electrical back stop device (part no 720195)
• Tool base with QuickChange-tool for P32 dies, 18 slots (part no 720198)
• Tool base with QuickChange-tool for P32 dies, 8 slots for 140 dies / 6 slots for 32 dies (part no 719124)
• Tool rack with QuickChange-tool (part no 692740)
• QuickChange-tool for 32-series dies (part no 701049)

Technical data
Max crimping dia (standard dies): 124 mm / 4.88 in
Max crimping dia with master dies: 150 mm / 5.9 in
Max crimping force: 2600 kN (260 tonnage)
Max opening without dies: 204 mm; additional max opening with dies: +64 mm
Die set series: 32 / 140
Master die D/L: 140 / 120 mm (5.52–4.73 in)
Motor power: 4.0 kW / 5.5 HP
Oil tank volume: 80 l
Cycle time (theoretical, 10 mm): 5.8 s
Dimensions (L x W x H): 865 x 553 x 871 mm (34.1 x 21.8 x 34.3 in)
Weight: 298 kg / 656 lbs
Notes: Crimping range can be increased with special dies. Maximum opening is total die travel; add to minimum crimping diameter of the die set used.

Die set 140-series

• 18860/84/110 — D 84 mm, L 110 mm — range 84.0–92.0 mm
• 18860/92/110 — D 92 mm, L 110 mm — range 92.0–100.0 mm
• 18860/100/110 — D 100 mm, L 110 mm — range 100.0–108.0 mm
• 18860/108/110 — D 108 mm, L 110 mm — range 108.0–116.0 mm
• 18860/116/110 — D 116 mm, L 110 mm — range 116.0–124.0 mm

Die set 32-series

• 18506/10 — D 10 mm, L 55 mm — range 10.0–12.0 mm
• 18506/12 — D 12 mm, L 55 mm — range 12.0–14.0 mm
• 18506/14 — D 14 mm, L 55 mm — range 14.0–16.0 mm
• 18506/16 — D 16 mm, L 55 mm — range 16.0–19.0 mm
• 18212/19 — D 19 mm, L 55 mm — range 19.0–22.0 mm
• 18506/22 — D 22 mm, L 70 mm — range 22.0–26.0 mm
• 18506/26 — D 26 mm, L 70 mm — range 26.0–30.0 mm
• 18506/30 — D 30 mm, L 70 mm — range 30.0–34.0 mm
• 18506/34 — D 34 mm, L 75 mm — range 34.0–39.0 mm
• 18506/39 — D 39 mm, L 75 mm — range 39.0–45.0 mm
• 18506/45 — D 45 mm, L 90 mm — range 45.0–51.0 mm
• 18506/51 — D 51 mm, L 90 mm — range 51.0–57.0 mm
• 18506/57 — D 57 mm, L 100 mm — range 57.0–63.0 mm
• 18506/63/110 — D 63 mm, L 110 mm — range 63.0–69.0 mm
• 18506/69/110 — D 69 mm, L 110 mm — range 69.0–75.0 mm
• 18506/74/110 — D 74 mm, L 110 mm — range 74.0–80.0 mm
• 18506/78/110 — D 78 mm, L 110 mm — range 78.0–87.0 mm

Technical specifications

• Model: P60
• Brand: Finn-Power
• Max crimping diameter (standard dies): 124 mm / 4.88 in
• Max crimping diameter with master dies: 150 mm / 5.9 in
• Max crimping force: 2600 kN (260 tonnage)
• Max opening without dies: 204 mm; additional opening with dies: +64 mm
• Die set series: 32 / 140
• Master die dimensions (D/L): 140 / 120 mm (5.52–4.73 in)
• Motor power: 4.0 kW / 5.5 HP
• Oil tank volume: 80 l
• Cycle time (theoretical, 10 mm): 5.8 s
• Dimensions (L x W x H): 865 x 553 x 871 mm
• Weight: 298 kg / 656 lbs
