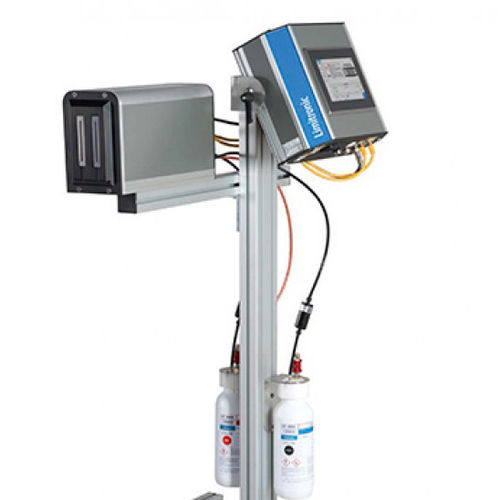

UV inkjet printing machine V6 CLP Lite

digitalfor paperfor textiles

Dual color in one compact printer Direct container print Operating cost reductions Print small font sizes Print GS-1 standard barcodes and CLP labeling Late stage customization Characteristics • Native resolution of 180dpi or 360dpi up to 60m/min • Multiple densities and contrasts • High quality bar codes. GS-1 standard • Intuitive user environment • Actual on-screen preview of the message to be printed (WYSIWYG) • Oil based and UV LED inks • Remote assistance • External hardware message selection • Integration with post-print bar code reader • Scripting for full customisation of jobs Printable products Porous, glossy, coated cardboard, paper, textiles, wood, plastic, metal, foam, EPS... OPTIONS Encoder, post-printing bar code verification, alarm beacons, bar code reader for selecting products, external message selection. Advantages • Customisation. Short print runs. Promotions • Reduction of stock of pre-printed containers • Practically zero maintenance • No stoppages to change consumables Specifications Print Print head resolution: 180 dpi 360 dpi Speed: 60 m/min @ 360dpi 0.2 - 192 m/min depending on the resolution Height: 72 mm 140 mm Maximum length: +100 metres Densities: 3 levels Font type: True Type ™, Open Type ™ fonts Character coding: Unicode Bar codes: GS-1 standard EAN/UPC, ITF-14, GS1-128, GS1 Datamatrix, GS1 QR Code Printing of variable fields: Of user (customised fields) and automatic fields (expiry dates, shift codes, counters) Orientation: Vertical (side of the product) Horizontal (top of the product) Printing on ramps (consult) Electrics Power supply: Auto-range 88-264VAC / 47-63 Hz, 108 W (max) Inputs (per block): 1 x printing signal 1 x encoder
