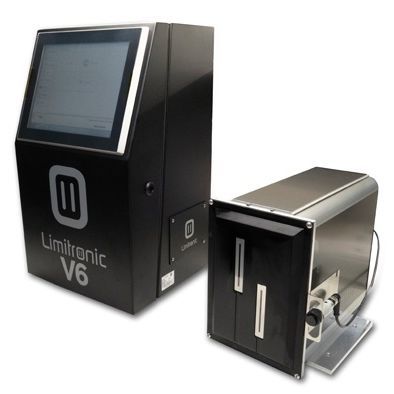

UV inkjet printing machine V6 Standard

digitalfor labelsfor cardboard

Modular solutions. Industrial console. Multiple possibilities for print head blocks. Customised printing height. Integrated message editor Characteristics • Opposite faces • Different heights • Different lines (independent) • Native resolution of 180dpi or 360dpi • Multiple densities and contrasts • High quality bar codes. GS-1 standard • Intuitive user environment • Actual on-screen preview of the message to be printed (WYSIWYG) • Oil based and UV LED inks • External hardware message selection • Integration with post-print bar code reader • Scripting for full customisation of jobs Printable products Porous, glossy, coated cardboard, paper, textiles, wood, plastic, metal, foam, EPS... OPTIONS Encoder, post-printing bar code verification, alarm beacons, bar code reader for selecting products, external message selection Advantages • Customisation. Short print runs. Promotions • Reduction of stock of pre-printed containers • Practically zero maintenance • No stoppages to change consumables • Printing on ramps of any inclination Specifications Print Print head resolution: 180 dpi 360 dpi Speed: 60 m/min @ 360dpi 0.2 - 192 m/min depending on the resolution Height: 70 mm and 140mm per block to 180 and 360dpi Maximum length: +100 metres Densities: 3 levels Font type: True Type ™, Open Type ™ fonts Character coding: Unicode Bar codes: GS-1 standard EAN/UPC, ITF-14, GS1-128, GS1 Datamatrix, GS1 QR Code Printing of variable fields: Of user (customised fields) and automatic fields (expiry dates, shift codes, counters) Orientation: Vertical (side of the product) Horizontal (top of the product) Electrics Power supply: Selectable by switch 88-132 VAC | 176–264 VAC
