Radiant panel Plafotherm® E 200 series

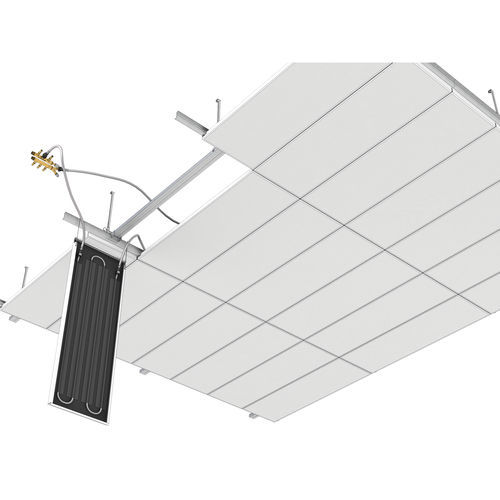

This Hook-On ceiling economically creates a pleasant room climate thanks to heating and cooling by means of radiation. Overlapping metal ceiling panels generate a homogeneous ceiling surface with concealed substructure. Different panel shapes and sizes can be realised and offer design freedom. For maintenance works, the ceiling panels can easily be removed without the need for any tools. On demand, thermally active and passive areas can be combined. heating/cooling by means of radiation creates a pleasant room climate flexibility thanks to the combination of thermally active and passive areas homogeneous ceiling surface due to concealed substructure individual design thanks to flexible panel shapes and sizes easy maintenance option of ceiling panels without tools cost-effective chilled ceiling system as economic solution hygienic and easy to clean Hook-On/Lay-On Length (L) 500 - 3000 mm Width (B) 200 - 1250 mm Height 30 mm, 50 mm Joint width (F) Butt joint, 1 mm, 3 mm, 5 mm Hook-On/Lay-On self-aligning Length (L) 500 - 3000 mm Width (B) 200 - 1250 mm Height 30 mm, 50 mm Joint width (F) Butt joint, 1 mm, 3 mm, 5 mm Hook-On on both sides Length (L) 500 - 3000 mm Width (B) 200 - 1250 mm Height 30 mm, 50 mm Joint width (F) Butt joint, 1 mm, 3 mm, 5 mm
