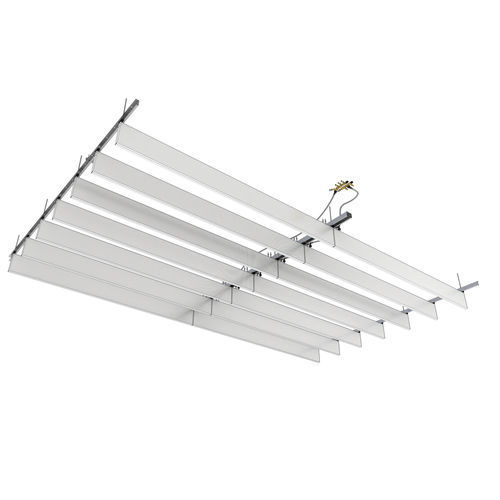

Radiant panel Plafotherm® L 608

This linear baffle ceiling is especially suitable for areas with increased maintenance demands. Thanks to movable baffles, you can comfortably reach the ceiling void. The open construction guarantees high cooling capacities and variable design options. Create unique appearances in your well-tempered rooms by means of freely selectable centre distances and baffle sizes. The ceiling void between the baffles can be used for installations. The metal baffles can quickly be installed – a combination with passive baffles is also possible. heating/cooling by means of convection and radiation creates a pleasant room climate flexibility thanks to the combination of thermally active and passive baffles high cooling capacity due to the open construction freely selectable centre distances and baffle dimensions independent installation of luminaires and fixtures possible between baffles visible ceiling void easy and quick installation easy maintenance option due to baffles that can be individually slid without tools Technical data Material galvanised sheet steel (ceiling element) Serviceability slide option without tools removable Weight 4 - 7 kg/m Room acoustics Sound absorber class ISO 11654 D - C Noise Reduction Coefficient ASTM C423 NRC 0.45 - 0.65 Evaluated Sound Absorption Coeff. ISO 354 αw 0.40 - 0.60 dB
