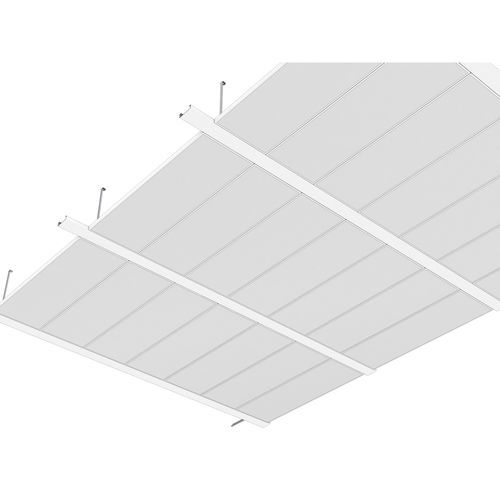

Curved sheet metal LMD-B 100 series

galvanized steelfor ceilingfor interior

The system LMD-B 100 features visible Post Cap profiles in linear arrangement. If necessary, partitions can be fastened to Post Cap profiles to individually divide your rooms. The striking profiles can be used for technical installations and can easily be adapted to building shapes by means of a radial arrangement. This Post Cap ceiling is a space-saving and cost-effective system. Depending on the need for inspection, Lay-In and Swing-Down type ceiling panels are available and can be combined.. visible linear Post Caps as design elements individual room layout thanks to the possibility to fasten partitions to Post Caps Post Caps can be used for technical installations or luminaires space-saving ceiling system with low construction height round, curved building shapes can be realised thanks to radially installed Post Caps and trapezoidal ceiling panels easy maintenance option due to ceiling panels that can be individually operated, swung down and slid cost-effective ceiling system as economic solution hygienic and easy to clean Lay-In Length (L) 250 - 3300 mm Width (B) 200 - 1250 mm Height 30 mm, 40 mm, 50 mm Joint width (F) Butt joint, 1 mm, 3 mm, 5 mm Lay-In with Hook-on edge Length (L) 250 - 3300 mm Width (B) 200 - 1250 mm Height 30 mm, 40 mm, 50 mm Joint width (F) Butt joint, 1 mm, 3 mm, 5 mm Lay-In with Hook-On notch Length (L) 250 - 3300 mm Width (B) 200 - 1250 mm Height 30 mm, 40 mm, 50 mm Joint width (F) 3 mm Lay-In, Swing-Down and slide option on longitudinal side Length (L) 250 - 2200 mm | 2201 - 3000 mm Width (B) 200 - 1250 mm | 200 - 625 mm Height 30 mm, 50 mm Joint width (F) 3 mm
