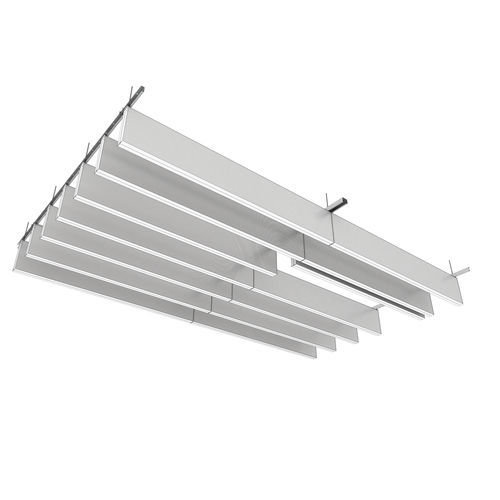

Flat sheet metal LMD-L 608 series

ceiling

This high-grade baffle ceiling is especially suitable for areas with increased maintenance demands. Due to movable two-piece baffles, you can comfortably reach the ceiling void. The linear baffles can quickly and easily be installed in different sizes and centre distances. Free spaces between the baffles can be used for different installations such as luminaires, sprinklers or for the suspension of signs. freely selectable centre distances and baffle dimensions independent installation of luminaires and fixtures possible between baffles visible ceiling void easy and quick installation easy maintenance option due to baffles that can be individually slid without tools two-piece Length (L) 500 - 3000 mm Width (B) 35 - 100 mm Height 120 - 500 mm Joint width (F) 3 mm one-piece, with luminaire LShine Length (L) 500 - 3000 mm Width (B) 50 mm Height 100 - 325 mm Joint width (F) 3 mm Technical data Material galvanised sheet steel Serviceability slide option without tools removable Weight 3 - 7 kg/m
