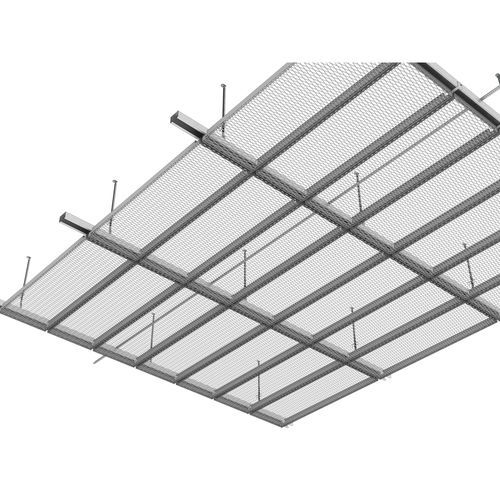

Expanded sheet metal LMD-St 213 BWS series

metalceiling

The system LMD-St 213 BWS with accentuated joints is fixed by means of hold-down clips and fulfils the tested ball-impact resistance class. We offer various expanded metal meshes with high open area, if desired, to receive an appealing look. Combine tested function with attractive design: expanded metal ceiling panels with backlighting can be realised. Moreover, every expanded metal ceiling panel can be individually operated. expanded metal ceiling with tested ball-impact resistance inclusive integrated luminaire homogeneous ceiling surface due to concealed substructure many design possibilities thanks to different tested mesh types and sizes the possibility to see – to a greater or lesser extent – into the ceiling void depends on the mesh or the requirement installation of illumination or further fixtures in the ceiling void is possible in case of a high open area ceiling layout with accentuated joints in both directions possible maintenance option due to ceiling panels that can be individually operated, swung down and slid Hook-On, expanded metal turned up Length (L) 250 - 3000 mm Width (B) 200 - 1250 mm Height 66 mm Joint width (F) 20 mm, 25 mm, 30 mm Hook-On, expanded metal bordered Length (L) 250 - 3000 mm Width (B) 200 - 1250 mm Height 58 mm Joint width (F) 20 mm, 25 mm, 30 mm Hook-On/Swing-Down, expanded metal bordered Length (L) 250 - 3000 mm Width (B) 200 - 1250 mm Height 58 mm Joint width (F) 20 mm, 25 mm, 30 mm Hook-On/Swing-Down, expanded metal turned up Length (L) 250 - 3000 mm Width (B) 200 - 1250 mm Height 66 mm Joint width (F) 20 mm, 25 mm, 30 mm Hook-On/Swing-Down, expanded metal bordered with opposite angle Length (L) 250 - 3000 mm
