Oxygen hose PlafoTube® PKbrassfire protectioncooling
Add to favorites
Compare this product
Characteristics
- Use
- for oxygen
- Material
- brass
- Applications
- fire protection, cooling, heating
- Norms
- DIN
- Other characteristics
- flexible
- Inner diameter
12 mm
(0.472 in)- Pressure
20 bar
(290.075 psi)- Temperature
Max.: 70 °C
(158 °F)Min.: 10 °C
(50 °F)- Delivered length
Max.: 10 m
(32'09" )Min.: 0.5 m
(1'07" )
Description

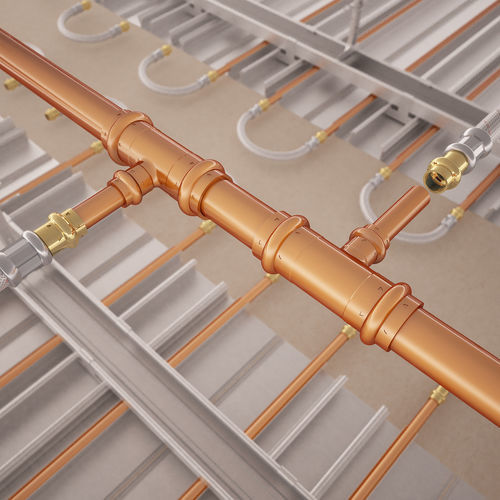

Flexible PlafoTube® connecting and connection hoses are the most important link between the individual heating and cooling elements. Pressure resistance and oxygen diffusion tightness acc. to DIN 4726 ensure a durable function. The press coupling creates a secure, non-detachable connection – thus, even non-revisable, jointless ceiling systems can be flexibly connected.
tested pressure resistance and oxygen diffusion tightness acc. to DIN 4726
secure connection due to press coupling
flexible connection of Plafotherm® heating/cooling coils
suitable for non-revisable, jointless ceiling systems
Technical details
Inner tube: plastic corrugated pipe
Nominal width: DN 13
Tightness acc. to DIN 4726: oxygen diffusion tight
PlafoTube® 3UE PK
Braid: stainless steel (silver)
Connection: press coupling
Version: straight
Material: brass
Building material class
Building material class
EN 13501-1
E
