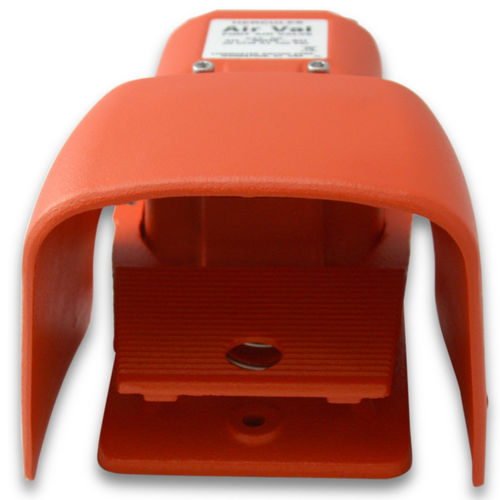

Control foot switch 4H-30H2-SH
pneumaticmomentarysingle pedal

control foot switch
control foot switch
control foot switch
control foot switch
Add to favorites
Compare this product


Characteristics

Function
control
Technology
pneumatic
Type
single pedal, momentary
Other characteristics
with cover

Description

Large Industrial Design Features & Benefits Designed for long life operation Full shield covering treadle 3 Holes provided for rigid mounting to floor or equipment Materials Internal Valve is constructed of a Non-Ferrous body, Stainless steel plunger and Teflon coated buna-N O-rings Air flows when plunger is depressed, stops flowing when plunger is released and exhausts back pressure on output side Air exhausts around plunger Plunger can be depressed flush with valve body without damage to valve Standard 1/8-27 N.P.T. input and output ports Filtered and lubricated air supply is required for best operation Line pressure up to 150 P.S.I. Robust cast iron housing Options Hercules AirVal also available as a 3-way in either single or 2-stage versions on special order 2 Stage models available Momentary and maintained versions available Applications Benders Box Marker Brakes Chopper
