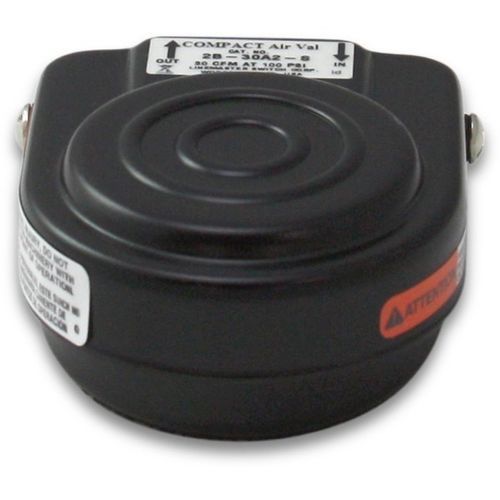

Control foot switch 2B-30A2-S

pneumaticmomentarycompact

Short description
Two-way momentary pneumatic control footswitch (not corded). Actuated by a plunger to control airflow for industrial machine applications.

Model details
Model: 2B-30A2-S
Price: $73.95
Switch Type: Air Switch
Action: Momentary
Housing Color: Black
Housing Material: Formed Steel
Pneumatic Valves: 2-Way Air Valve
Input & Output Ports: 1/8"-27 NPT ports - exposed

Features & Benefits

• Nonskid base pad for stable placement
• Designed for long-life operation
• Two-way models do not exhaust back pressure
• Plunger can be depressed flush with valve body without damaging the valve
• Standard 1/8"-27 N.P.T. input and output ports
• Filtered and lubricated air supply recommended for best performance
• Line pressure up to 150 P.S.I.

Materials

• Internal valve constructed with a non-ferrous body
• Stainless steel plunger
• Teflon-coated Buna-N O-rings
• Air flows when plunger is depressed and stops when released; exhausts back pressure on the output side
• Air exhausts around the plunger
• Strong formed steel housing

Options

• Twin version available
• Heavy-gauge steel guard available

Applications

• Cut & form machines for transistors and similar assembly equipment

Warning
COMPRESSED AIR IS POWERFUL. ALWAYS USE CARE. MAXIMUM LINE PRESSURE UP TO 150 P.S.I.

Technical specifications

• Model: 2B-30A2-S
• Switch Type: Air Switch
• Action: Momentary
• Housing Color: Black
• Housing Material: Formed Steel
• Pneumatic Valve: 2-Way Air Valve
• Ports: 1/8"-27 NPT input & output (exposed)
• Recommended: Filtered and lubricated air supply
• Maximum Line Pressure: 150 P.S.I.
• Price (US): $73.95
