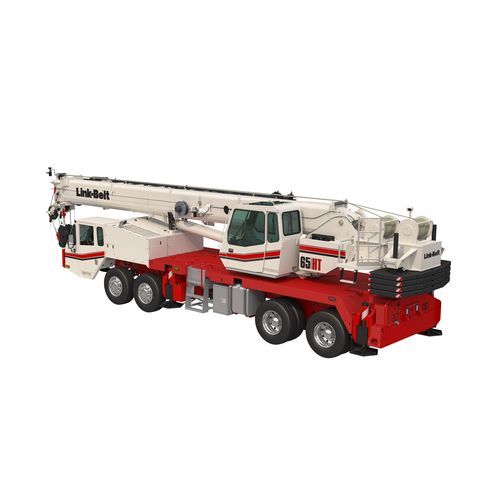

Truck-mounted crane 65|HT

boomtelescopicfor construction

Nominal Capacity @ Radius 65 USt @ 7 ft Standard Boom 36.8 -115 ft Telescope System Full Power Attachment - Option 1 28.5 ft Lattice Attachment - Option 2 28.5 - 51 ft Lattice Maximum Tip Height 171 ft Maximum Line Pull 15,822 lbs Maximum Speed 462 fpm • 115’ fully extended length – 5’ longer than predecessor • Formed boom construction • Greaseless boom technology • Reduced maintenance and upkeep • Base rating increase to 65 US Tons • Increased total counterweight to 18,700lbs • Slip resistant textured paint on walking surfaces • Fall arrest anchor points • Swing camera • GVW less than 84,000lbs with full counterweight • Transport counterweight on the upper or deck • EPA 2021 On-Highway Certification
