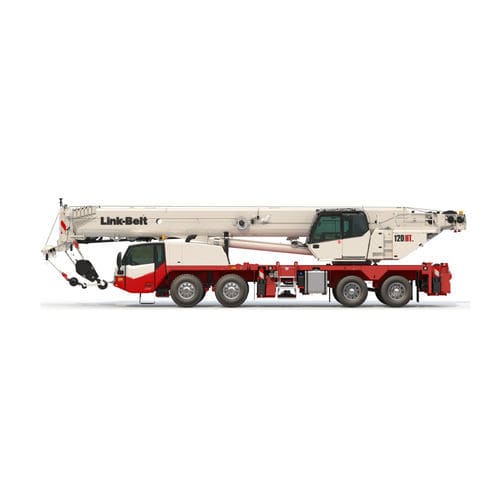

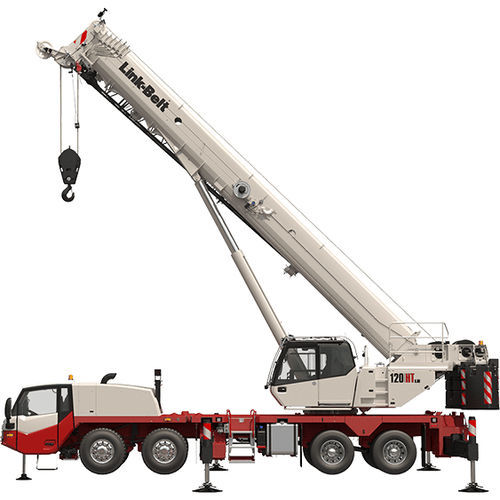

Truck-mounted crane 120|HTLB

telescopicfor constructionlifting

Nominal Capacity @ Radius 110 mt @ 2.1 m Telescope System Pin & Latch Attachment - Option 1 A: 10.7 m – 17.7 m Bi-Fold Lattice Fly / B: 3 m – 10.7 m – 17.7 m Bi-Fold Lattice Fly Maximum Tip Height 80.1 m Maximum Line Pull 105.1 kN Maximum Speed 107.9 m/min Key Features Greaseless 39.8 ft – 196.9 ft pin and latch seven-section boom Longest attachment in the truck crane market: 263 ft max tip height Link-Belt SmartFly: different configurations to address any job site need NEW for the 120|HT: three-piece (9.5 ft – 35 ft – 58 ft) fly with integrated heavy-lift section: offsetable to 0°, 15°, 30°, and 45° Full three-piece fly is stowable on the machine, and no capacity deducts for stowed attachment Excellent transportability — can be configured to meet some of the toughest transportation laws in North America Industry-first suspension and axle design: independent air ride suspension and air disc brakes — for the first time on a truck crane! Highest gross axle rating (51,200 lbs on front tandem) of any other truck crane in the market Transports at 110,000 lbs with 20,000 lbs of counterweight, three-piece fly, 60-t block, and 10-t ball installed Cummins X12 Engine: EPA 2022 Compliant On-Highway 455 HP Engine ZF TraXon (no clutch pedal) Manual Transmission Link-Belt Pulse 2.0 operating system, including 81-position V-CALC-individual outrigger extension system Link-Belt Vision Package & full LED lighting package – Standard All new carrier cab: NEW wider carrier cab — nine inches wider than previous generation of truck crane cab Airbag-mounted cab for improved ride quality & operator comfort
