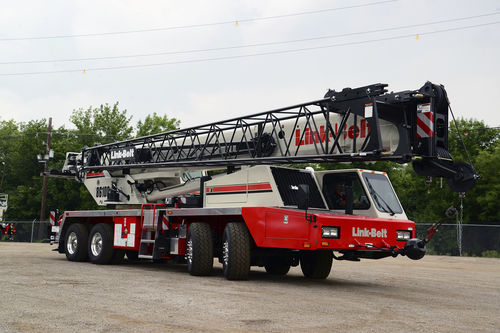

Truck-mounted crane HTC-86100

latticefor constructionlifting

Nominal Capacity @ Radius 85 mt @ 3 m Telescope System Pin & Latch Attachment - Option 1 A: 10.7 m Bi-Fold Lattice Fly / B: 10.7 m – 17.7 m Bi-Fold Lattice Fly Attachment - Option 2 (1) or (2) 4.9 m insert(s) Maximum Tip Height 72.2 m Maximum Line Pull 75.1 kN Maximum Speed 146.3 m/min Key Features 38 ft – 140 ft greaseless formed boom 35 ft – 58 ft two-piece onboard fly One or two available fly extensions for 90 ft of total available fly Full fly is stowable on the machine, and no capacity deducts for stowed attachment Well-equipped machine transports under 96,000 lbs with 11,500 lb counterweight Transports under 97,000 lbs with 11,500 lbs of counterweight, two-piece fly, block, and ball installed “Stow ‘n go” outrigger pontoons are easily secured for transport Cummins X12: EPA 2022 Compliant On-Highway 450 HP engine ZF TraXon (no clutch pedal) Manual Transmission Link-Belt Pulse operating system, including CALC-selectable outrigger extension system Link-Belt Vision Package – Standard Flat deck design — maintains four points of access regardless of upper position Pull-out CabWalk for ease of access to and from the operator’s cab
