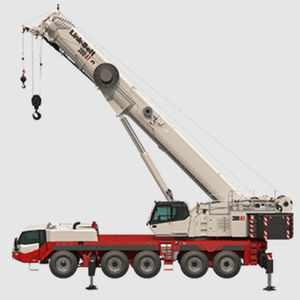

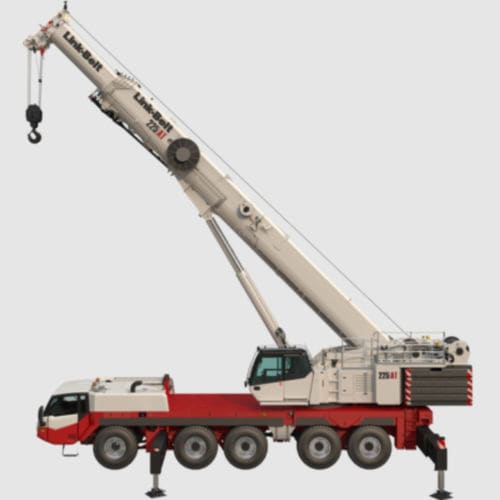

Truck-mounted crane 225|AT

telescopicfor constructionlifting

Nominal Capacity @ Radius 200 mt @ 2.4 m Standard Boom 14 m – 61.5 m Telescope System Pin & Latch Attachment - Option 1 12.8 m – 21.6 m Bi-Fold Lattice Fly Attachment - Option 2 (1) or (2) 5.5 m Lattice Extension(s) Maximum Tip Height 102 m Maximum Line Pull 130.7 kN Maximum Speed 137.2 m/min Key Features Greaseless 44.9 ft – 202.2 ft pin and latch six-section boom Two-piece (42 ft – 71 ft) hydraulically offset SmartFly Standalone 8-ft heavy-lift fly available Two available lattice inserts to achieve max tip height of 330 ft Full two-piece fly is stowable on the machine, and no capacity deducts for stowed attachment Excellent transportability — can be configured to meet the toughest transportation laws in North America Modular counterweight designed for maximizing transport efficiency — three overflow loads for max counterweights and fly inserts Cummins X15 Engine: EPA On-Highway Certified 554 HP Engine ZF TraXon (no clutch pedal) Manual Transmission Link-Belt Pulse 2.0 total crane operating system, including infinitely variable V-CALC-individual outrigger extension system NEW: SmartStack counterweight monitoring system Link-Belt Vision Package & full LED lighting package – Standard Dual-occupant, European-style AT cab TPMS: Wireless Tire Pressure and Temperature Monitoring Flat deck design — maintains four points of access regardless of upper position
