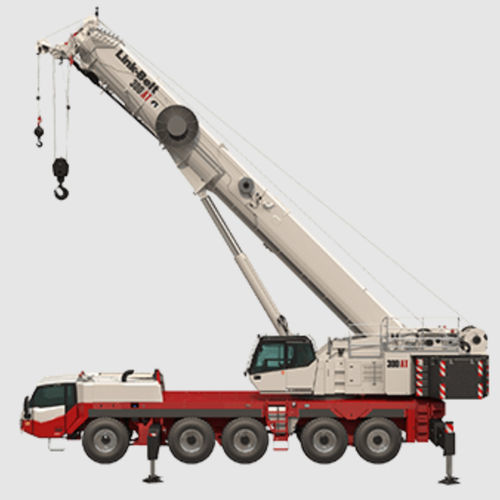

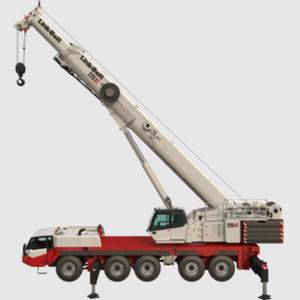

Truck-mounted crane 300|AT

boomfor constructionlifting

Nominal Capacity @ Radius 275 mt @ 2.4 m Telescope System Pin & Latch Attachment - Option 1 12.8 m – 21.6 m Bi-Fold Lattice Fly Attachment - Option 2 (1) or (2) 5.5 m Lattice Extension(s) Maximum Tip Height 111 m Maximum Line Pull 130.7 kN Maximum Speed 137.2 m/min Key Features Greaseless 46.1 ft – 238.7 ft pin and latch seven-section boom Two-piece (42 ft – 71 ft) hydraulically offset SmartFly Standalone 8-ft heavy-lift fly available Two available lattice inserts to achieve max tip height of 365 ft Full two-piece fly is stowable on the machine, and no capacity deducts for stowed attachment Excellent transportability — can be configured to meet some of the toughest transportation laws in North America Modular counterweight designed for maximizing transport efficiency — two overflow loads for max counterweights Cummins QSX15 Engine: T4F/Stage V Compliant Off-Highway 548 HP Engine ZF TraXon (no clutch pedal) Manual Transmission Link-Belt Pulse 2.0 total crane operating system, including 81-position V-CALC-individual outrigger extension system NEW: SmartStack counterweight monitoring system Link-Belt Vision Package & full LED lighting package – Standard All new carrier cab: Dual-occupant, European-style AT cab TPMS: Wireless Tire Pressure and Temperature Monitoring Flat deck design — maintains four points of access regardless of upper position
