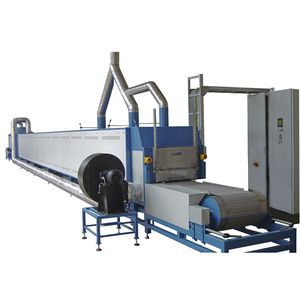

Chamber furnace FAU

conveyorthermaldrying

curing, drying For curing and cooling of coated aluminum pistons on transport pallets in cyclic operation. Further possible applications: Lacquer drying according to DIN EN 1539 (not EX protected), curing, drying The most important characteristics: Thermal process especially adapted to the product for curing of a surface coating on aluminum surfaces Design as reverse product flow furnace (loading and unloading at same furnace side) Synchronized cross conveyor at the inlet and at the end of the heating track Transport of the material on product carriers/pallets via chain conveyor lines Cycle time 60 sec. (alterable), middle transport speed 163 mm/min The heating system is designed a heating register with tube radiators and separated in two heating ones à 37,5 kW each Transport of the pallets is effected by two parallel chain lines through the furnace and cooling channel Automated operation mode Robust design Quality made in Germany
