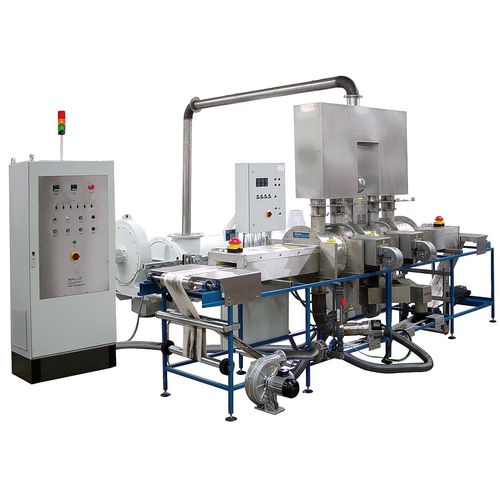

Chamber furnace MDBH

thermaldryingcuring

thermal recycling Carbon fiber composite curing/recycling. Other possible areas of use could be: Microwave drying of various materials, e.g. bulk materials, liquids Microwave treatment of chemicals, plastics, cork and food PRODUCT SPECIFICATIONS The most important characteristics: Microwave, heating conductor and hot air heated Heating by 12 magnetrons with 800 W each Operating frequency 2,45 GHz Heating power adjustable between 1,6 and 9,6 KW Hot air heating power 30 KW Resistance heating power 3,8 KW Horizontal operation, 3 heating zones Belt speed adjustable from 0,05 to 0,25 m/min Useful chamber size in every axis is about 370 mm Heated length 750 mm Smoke detector Underpressure at T = 20 °C app. 200 mbar Gas feeding device with flow meter Air preheater for soot burn-off Post-combustion exhaust gas after burning We make it possible: Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes.
