Commercial tent Hexagon Module Square Tent

transportablemultifunctionmodular

General overview
The Hexagon Module Square Tent is a modular hexagonal tent system designed to increase usable interior space and provide flexible combinations. Its symmetrical geometry offers visual appeal and expands layout possibilities for single or multiple combined units.

Design and structure
The Module Tent is engineered as a cube-like assembly with distinctive top options — cone, dome or flat top — allowing differentiation from conventional tent designs. Structural upgrades improve overall stability and load distribution compared with quadrangular solutions.

Advantages and specialty

• Larger internal space compared with equivalent quadrilateral modules.
• Uprights and roof beams connect seamlessly; the modular system supports unlimited expansion.
• Connections use hot-dip galvanized steel inserts machined by CNC with flower-shaped corner bracing for precise fit and visual distinctiveness.
• Roof drainage is directed from eave to upright via roof beams to prevent dripping at the eaves.

Accessories and features

• Double-layer vacuum glass walls for improved sound and thermal insulation; mesh-patterned arrangement for a modern appearance.
• All-black aluminum frame combined with a plain white roof cover for a contemporary aesthetic.
• Customizable cassette flooring to ensure a level, modular floor system.

Applications

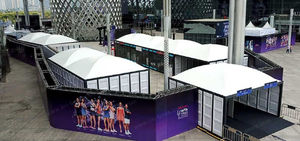

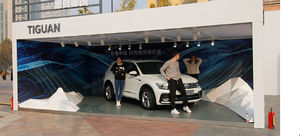

Suitable for temporary, semi-permanent or permanent installations such as exhibition halls, mobile offices, VIP lounges, multi-occupancy suites and glamping hotels.

Patent
This product is protected by national invention patents: Patent No.: 201720905621.3; ZL201920591123.5

Hexagon Module Square Tent technical data (table)
Span Width | Eave Height | Side Length | Peak Height | Main Profile
12 m | 3 m | 6 m | 7.1 m | 175x175x2.8 mm
16 m | 3 m | 8 m | 8.2 m | 175x175x2.8 mm
20 m | 3 m | 10 m | 9 m | 175x175x2.8 mm

Specifications

• Model: Hexagon Module Square Tent
• Span width options: 12 m, 16 m, 20 m
• Eave height: 3 m (for listed spans)
• Side length options: 6 m (12 m span), 8 m (16 m span), 10 m (20 m span)
• Peak height: 7.1 m (12 m), 8.2 m (16 m), 9 m (20 m)
• Main profile: 175x175x2.8 mm (aluminum)
• Top types available: cone, dome, flat top
• Connections: hot-dip galvanized steel insert with CNC-carved corner bracing
• Wall option: double-layer vacuum glass walls (acoustic & thermal insulation)
• Flooring: customizable cassette flooring ensuring a level floor
• Typical uses: exhibition halls, mobile offices, VIP lounges, multi-occupancy suites, glamping hotels
• Patents: 201720905621.3; ZL201920591123.5
