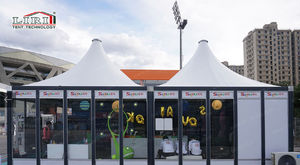

Commercial tent Modular Dome

multifunctionmobiledisassemblable

General Details

• Modular dome-shaped European-style roof with a distinctive silhouette suitable for exhibition and event applications.
• Designed for side-by-side combination: dome canopies share columns and uprights for seamless connection and unlimited expansion.
• Integrated roof drainage: water is routed from the eave beam to the uprights to avoid ponding and staining.
• Configurable layouts: can be arranged in multiple side-by-side configurations to create varied shapes and maximise usable area.
• Short erection time; components are engineered for easy assembly and disassembly on site.

Size
Dome canopy: 5x5 m, 6x6 m

Usage
When equipped with additional facilities, the modular dome tent is suited to temporary, semi-permanent or permanent outdoor exhibition halls, mobile offices, VIP lounges, multi-purpose suites and outdoor hotels.

Patent
National invention patents: ZL201720905621.3, ZL201920591123.5

The Combination Connection Mode of Modular Dome Tent
Modular dome canopies connect by sharing columns and uprights to enable seamless connections and unlimited expansion (illustrations shown on the product page).

Product Specification
Span Width | Eave Height | Ridge Height | Main Profile
5 m | 3 m | 3.9 m | 150x150x2.5 mm (4-channel)
6 m | 3 m | 4.2 m | 150x150x2.5 mm (4-channel)
8 m | 3 m | 4.4 m | 150x150x2.5 mm (4-channel)
9 m | 3 m | 4.6 m | 150x150x2.5 mm
10 m | 3 m | 4.8 m | 150x150x2.5 mm (4-channel)

Technical Features

• Product name / model: Modular Dome Tent
• Available dome canopy sizes: 5x5 m, 6x6 m
• Span widths available: 5 m, 6 m, 8 m, 9 m, 10 m
• Eave height (all variants): 3 m
• Ridge heights: 3.9 m (5 m span), 4.2 m (6 m), 4.4 m (8 m), 4.6 m (9 m), 4.8 m (10 m)
• Main profile (structural frame): 150x150x2.5 mm (metric)
• Roof design: dome-shaped European-style roof with integrated drainage channel
• Modularity: side-by-side combination sharing columns/uprights for seamless connection and expansion
• Typical uses: outdoor exhibitions, mobile offices, VIP lounges, multi-purpose suites, outdoor hotels
• Assembly: short construction period; engineered for easy assembly and disassembly
• Intellectual property: national invention patents ZL201720905621.3 and ZL201920591123.5
