Industrial tent TT5/240

commercialtransportablereception

Overview

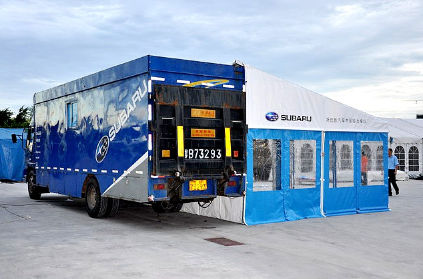

The TT-01 trailer tent is a vehicle-mounted shelter designed for temporary on-site operations such as mobile offices, field command posts, temporary warehouses and emergency response. The structure integrates with the host vehicle to provide a stable covered space and can be ventilated by opening sidewalls.

General Details
The frame uses vehicle support combined with aluminium poles. Main upright and roof-beam profiles are available as 82x48x3mm (2-channel) or 100x82x3mm (4-channel). Cover fabric: 850 g/sqm PVC double-layer polyester textile. Fabric characteristics: waterproof, mildew resistant, UV resistant; flame retardant to DIN4102 B1, M2. Ventilation is provided by opening sidewalls. Wind resistance: up to 80 km/h (wind load 0.3 kN/m2).

Accessories

• Clear PVC window
• Mesh window
• Ground anchor
• Weight plate
• Glass door
• Clear PVC fabric for roof/sidewalls
• Flooring system
• Rain gutter

Applications / Uses

• Temporary mobile office
• Welcome / reception center
• Temporary warehouse
• Temporary workshop / maintenance bay
• Emergency tent / rescue operations

Product specification
Span Width: 5 m
Eave Height: 2.4 m
Ridge Height: 4.04 m
Bay Distance: 3.2 m
Main Profile: 82x48x3mm (2-channel) or 100x82x3mm (4-channel)

Technical features

• Vehicle-mounted aluminium modular frame for rapid assembly and compact transport
• PVC double-layer cover, 850 g/sqm, available in opaque or semi-translucent options
• Fire retardant to DIN4102 B1, M2
• Opening sidewalls for ventilation and access
• Optional accessories to adapt to operations: windows, doors, floor, anchors, gutters
• Designed for field use: wind resistance up to 80 km/h (0.3 kN/m2)
