Commercial tent Ice Hockey Rink

disassemblabletransportablemodular

Overview

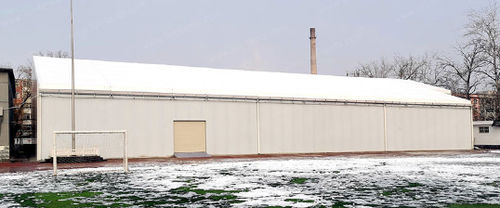

Modular indoor ice hockey rink based on a clear-span tent structure with aluminum alloy modular frames. Designed for rapid on-site assembly, long-term indoor use and flexible relocation. Suitable for sports venues requiring column-free space and customizable dimensions.

Key product features

• Modular design: freely assembled and disassembled for reuse and relocation.
• Main structure: aluminum alloy modular frames (brackets) for lightweight strength.
• Clear span capacity: up to 70 m; length extendable in 3 m or 5 m modules.
• Cover material: PVC synthetic fiber membrane with anti-mildew, anti-aging and flame-retardant properties.
• Can integrate lighting, HVAC and other venue systems to support rink operation.
• Customizable layout and dimensions to meet specific sports standards and client requirements.

Applicable tent types

• Herringbone tent
• Arc tent
• Flat roof tent
• Curved column tent
• Polygon tent
• Double-layer tent
• Other clear-span sports tent types as required

Use and installation
The rink assembly enables fast erection (typically a few days) and is designed for long-term indoor operation. The modular frame permits incremental length extension and adaptation to different site conditions and deployment needs.

Technical specifications

• Typical ice hockey rink dimensions (examples): max 61 m (length) × 30 m (width); min 56 m (length) × 26 m (width).
• Corner arc radius: approx. 7.0 – 8.5 m.
• Structure material: aluminum alloy modular frames.
• Maximum clear span: up to 70 m.
• Length modular increments: 3 m or 5 m (infinitely extendable by modules).
• Cover material: PVC synthetic fiber membrane — anti-mildew, anti-aging, flame-retardant.
• Optional integrations: lighting, HVAC and other venue systems (customizable).
• Assembly: rapid erection and disassembly for relocation and reuse.
