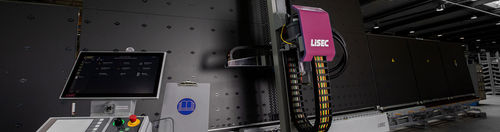

Stripping machine AKL-A

The vertical edge deletion plant, AKL-A, is equipped to work on all conventional surface-coated glass sheets. The LiSEC AKL-A grindes the edge of rectangles and other shapes. This development sets a high standard with regard to processing options. Removing the metal coatings from the edge areas of surface-coated glass sheets ensures that the butyl adheres properly. How is the AKL-A configured? The AKL-A is divided into 3 sections. These are the inlet section, the grinding section and the outlet section. How does flat glass stripping work? The machining process begins at the inlet section, where the glass sheet is transported towards the grinding section by means of a belt drive. In the grinding section, the glass sheet is then stripped by means of a grinding wheel. The grinding unit has a speed control function that adjusts itself according to the current wheel diameter. Coating residue and dust are removed using an automatic suction device. The sheet is then conveyed onwards to the outlet section. For whom is AKL-A suitable? Both small and large companies in the field of glass processing can benefit from the AKL-A, because optimum glass sheet deletion is the cornerstone of every good piece of insulating glass. What advantages does the AKL-A offer? The AKL-A works in a highly clean and precise manner due to its automatic extraction system and automatic speed control. In addition, the automatic coating detection function detects if a coating is present and also what side the coating is on. ■ Edge stripping of rectangles and shapes in a single cycle ■ Available as a stand-alone machine or with the option of integration into an insulating glass line
