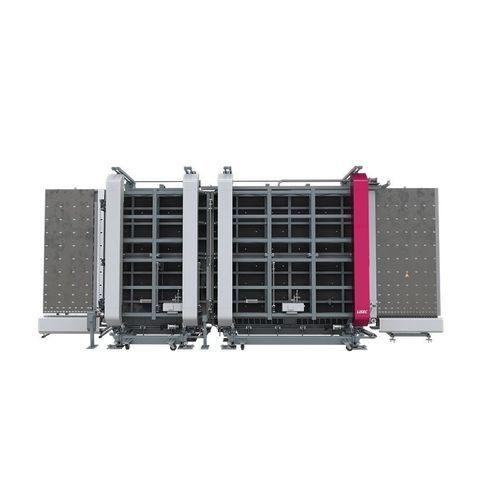

Pneumatic press FPS-A

electromechanicalfor thermoplasticsautomatic

The latest generation of gas filling presses is suitable for a wide range of applications thanks to the individual configuration possibilities and impresses with an excellent price/performance ratio. The improved transport system takes all glass types into account during assembly allowing the processing of thermoplastic spacers as well. How is the FPS-A configured? Glass transport is implemented via a divided carrier with toothed belt. The reinforced design makes it possible to process high glass thicknesses and heavy units. The pressed panel surfaces are made of special multi-layer panels, which guarantee precise package thickness of the insulating glass unit with the lowest manufacturing tolerances. The waterproofing of the pressing chamber is achieved on the inlet side by means of a fixed seal bar and on the outlet side by means of a moveable seal bar, so that the gas consumption is minimised. How does the fully automatic gas filling press work? The first glass sheet is transported in and is positioned in the press after the trailing edge has been detected by a sensor. The vacuum suction cups on the opposite moveable press plate adopt the glass sheet. The second glass sheet equipped with its spacer bars is transported in and placed in the same position as the previous glass sheet. The press chamber is then made waterproofed. In the newly formed cell, the gas rises inside the unit and displaces the enclosed air upwards without producing any turbulence. Once the required gas amount has been attained, the unit is pressed and sent out.
