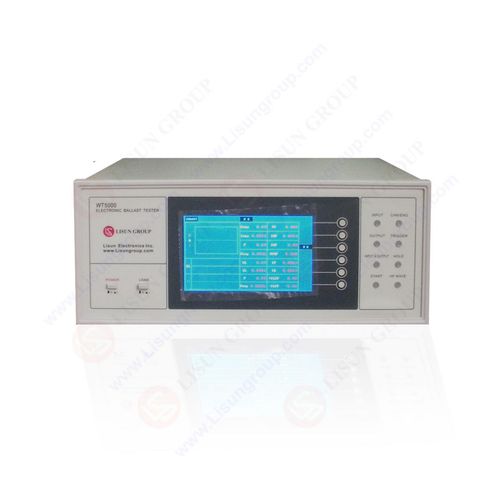

Electronic ballast WT5000

WT5000 Electronic Ballast Tester is the updated version of WT3000 with a super LCD for displaying waveforms and parameters directly, and it includes all the functions and technical parameters of WT3000. Reports can be printed if printer is connected. It also meets the latest requirements for electronic ballasts in international standards IEC 60929, IEC 60969, IEC 61000-3-2, GB/T15144-2005, GB/T17263-1998 , GB/T-17625.1 and so on. • WT5000 has expanding analysis for envelope wave • WT5000 has Super LCD which can display the test report directly but no need to connect with PC • Communicate the PC via RS-232, the English software can be run in WinXP, Win7 and Win8 • Accuracy for Voltage, Current and Power: ± (0.1% reading+0.1% range+1 word) • Accuracy for Power Factor: ± (0.002+0.001/reading+1 word); Accuracy for Frequency: ±0.1% reading • Accuracy for Harmonic (Virtual Value): ± (0.1% range+5% reading) • Accuracy for Imported Cathodic current: ± (1% reading+1% range+2 word) • Accuracy for Oscillation frequency: ± 0.5% reading • Input Parameters Measurement: 1) Test voltage, current, power, power factor, power net frequency, total harmonic and 0~39 harmonic. 2) Range of voltage and current basic wave frequency: 45Hz~65Hz 3) Range of voltage: 10.0~300.0V (virtual value); Range of power: NR: 0~450.0W; WR: 0~999.9W 4) Range of current: NR: 0.010~1.500A (virtual value); WR: 0.010- 4.500A (virtual value) 5) Range of power factor: 0.000~1.000 • Output Stably Parameters Measurement: 1) Test lamp voltage, current, power, filament current, imported cathodic current, crest factor, oscillatory frequency
