LCD monitor CPD5503-MNS-E11

industrial55"3840 x 2160

Overview

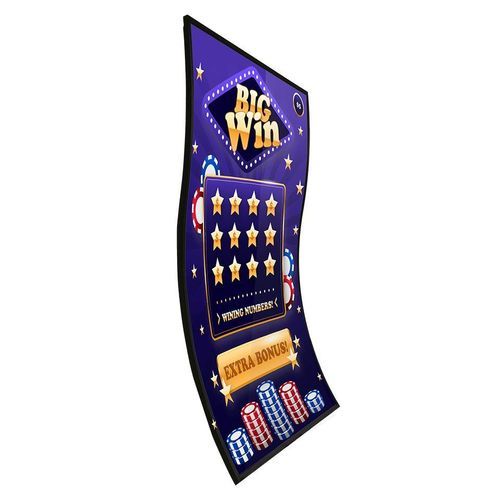

Litemax CPD5503-MNS-E11 is a 55" S-type curved 4K2K (3840 x 2160) LCD with Top R1500 and Bottom R1000 curvature. It integrates multi-input interfaces (DP and HDMI) and is developed as a display solution for casino slot machines, gaming cabinets and interactive kiosks.

Main features

• 55" large-format S-curved LCD
• Curvature: Top R1500 and Bottom R1000
• Resolution: 3840 x 2160 (4K2K)
• Brightness: 600 nits
• High color saturation (MaxRGB, NTSC ~92%)
• Wide viewing angle: 178° H / 178° V
• Multi-input: HDMI, DisplayPort (DP)
• Target applications: casino slot machines, gaming cabinets, kiosks

Additional technical highlights

• Pixel pitch: 0.315 x 0.315 mm
• Pixel density: 80 PPI
• Contrast ratio: 2000 : 1
• Response time (typical): 8 ms
• Operating power: DC 24V input; LCD power consumption up to 142W (Max.)
• Designed for high color saturation and wide viewing angles for critical visual applications

Technical specifications

• Model Name: CPD5503-MNS-E11
• Description: 55", 600 nits, S-Curve Top R1500 and Bottom R1000, 3840 x 2160, MaxRGB
• Screen Size: 55"
• Display Area (mm): 1209.6 (H) x 680.4 (V)
• Brightness: 600 cd/m2
• Resolution: 3840 x 2160
• Aspect Ratio: 16 : 9
• Contrast Ratio: 2000 : 1
• Pixel Pitch (mm): 0.315 (H) x 0.315 (V)
• Pixel Per Inch (PPI): 80
• Viewing Angle: 178° (H), 178° (V)
• Color Saturation (NTSC): 92%
• Response Time (Typical): 8 ms
• Input Interface: HDMI, DP
• Input Power: DC 24V
• LCD Power Consumption: 142W (Max.)
• Outline Dimensions (mm): 710.6 x 1222.9 x 168.7
• Weight (Net): 26 kg
• Operating temperature: 0 °C ~ 50 °C
• Storage temperature: -20 °C ~ 60 °C
