TFT-LCD monitor DPD1333-BTE-T11

multitouch screenLED backlightPCAP touchscreen

Product overview

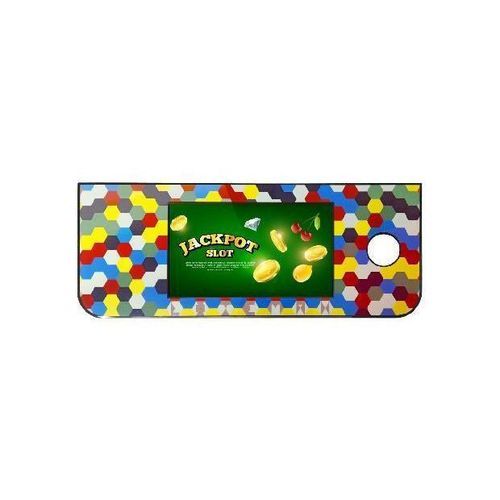

The DPD1333-BTE-T11 is a 13.3-inch hybrid TFT LCD display offering 500 nits brightness, 1920 x 1080 Full HD resolution and PCAP 10-point multi-touch. It integrates Eink Prism for customizable color patterns and supports dual video input via HDMI and DisplayPort. With low power consumption and an industrial operating range, it is suited to kiosks, HMI, infotainment and professional applications.

Key summary

• 13.3” TFT LCD hybrid display
• 500 nits LED backlight
• Resolution 1920 x 1080 (Full HD)
• PCAP multi-touch (10 points)
• Eink Prism customizable pattern, 6 colors
• Dual Display support (HDMI, DisplayPort)
• Low power consumption (6 W typical)

Technical specifications

• Model name: DPD1333-BTE-T11
• Size: 13.3”
• Display area (mm): 293.76(H) x 165.24(V)
• Brightness: 500 cd/m² (500 nits)
• Resolution: 1920 x 1080
• Aspect ratio: 16:9
• Contrast ratio: 800:1
• Pixel pitch (mm): 0.153 x 0.153
• PPI: 166
• Viewing angle: 170° H / 170° V
• Color saturation (NTSC): 50%
• Display colors: 16.7M
• Response time (typical): 30 ms
• Video interface: HDMI, DisplayPort
• Input power: DC 12V
• Touch: PCAP (10 points)
• Power consumption: 6 W
• Dimensions (mm): 617 x 240.5 x 37.6
• Net weight: 4 kg
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -20 °C to 60 °C
