Digital temperature controller ProxATEX

digital temperature controller
digital temperature controller
digital temperature controller
digital temperature controller
Add to favorites
Compare this product


Protection level
fail-safe, UL, ATEX, for harsh environments, IP66, dust-proof
heating, process, industrial, laboratory, food, for the plastics industry, for the food industry
Other characteristics
panel-mount, configurable, compact, multi-function, mobile, ramp/soak-programmable, for hazardous areas, safety
Maximum temperature

Max.: 200 °C (392 °F)

Min.: 0 °C (32 °F)

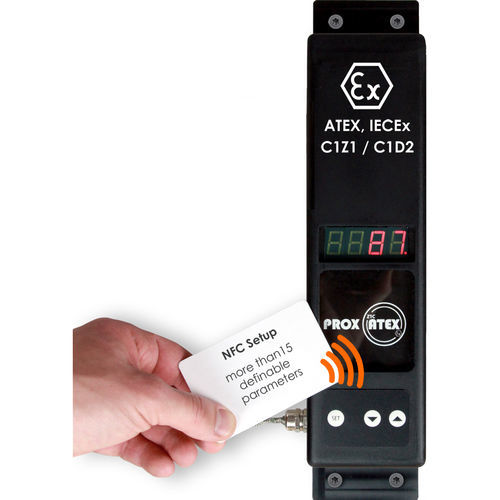

LMK Thermosafe Ltd are pleased to present the Patented* ProxATEX temperature controller for use in potentially explosive locations. ATEX/IECEx Zone 1 certified for use with heating equipment operating within potentially explosive atmospheres. Specifically designed for use with our THERMOSAFE®, FARATHERM® and Inetliheat products (*USA/Europe/Australia) TAKE THE RISK OUT OF OPERATORS SETTING CRITICAL PARAMETERS. Featuring Near Field Communication (NFC), credit card sized tokens are pre-programmed with key parameter settings. Simply hold the card close to the front of the controller and the settings are instantly updated. Two NFC cards will be provided pre-programmed to the users settings. Additional cards can be supplied with alternative settings. The simple 3–button interface can be used to adjust set point and other parameters whilst the device is operational WITHIN THE HAZARDOUS AREA, plus for additional security these push buttons can be disabled or limited. Dependent on the heater size and configuration, the ProxATEX can be pre-installed directly onto the heater, mounted onto a wall, or alternatively a pre-wired single pillar movable support stand can be supplied. ETL approved versions to UL and CSA hazardous location standards also available if required. Features include: -Digital display to show measured values and other paramenters -Lock function with password to ensure settings remain unchanged -Adjustable timers for delayed start, and soak period -Maximum power output adjustable 0 – 100% -1 or 2 thermocouple input options -Setpoint offset & Hysteresis adjustment for custom control environments
