Mechanical lifting system

framehandlingfor induction heating

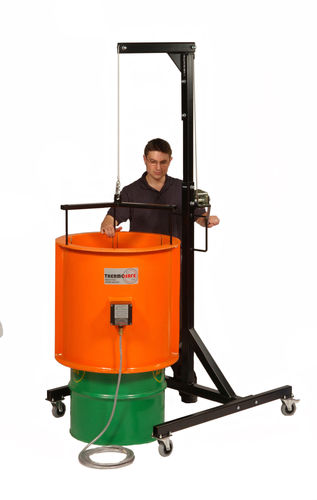

The speed and flexibility of the Thermosafe Induction Heater means that in busy production environments frequent drum changes are often required. The Thermosafe may be moved and lifted manually under appropriate supervision. With a weight of 48kg it can be lifted over a drum by two operators. Alternatively a number of handling options are available to reduce worker fatigue and comply with any site-specific workplace practices. Thermosafe Mechanical Roving Lifting Frame Designed only for use with a Thermosafe Induction Heater, the Lifting Frame offers a simple solution to maneuvering and lifting a Thermosafe. Each heater can then be positioned quickly and easily by just one operator. The sturdy steel frame is fitted with a braked winch easily capable of lifting either one Thermosafe Type-A or up to two Type-B heaters. Robust and lockable casters are fitted to the frame, and simple retaining bars and clips are used to secure and quickly release the Thermosafe. The Lifting Frame is suitable for use in hazardous areas, certified to the requirements of the ATEX Directive 94/9/EC for non-electrical equipment and Machinery directive 98/37/EC. The standard version of the Lifting Frame can straddle a Euro pallet along the length, and customised versions are available for placement around larger pallets or bunds / leakage sumps / spill pallets.
