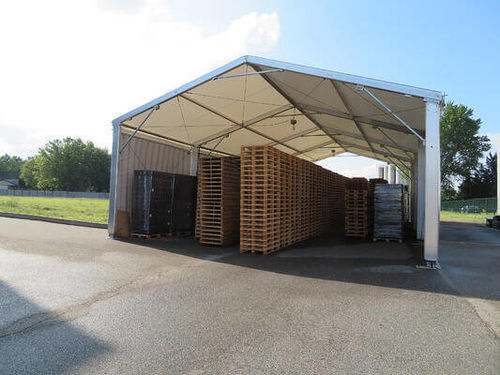

Steel storage shelter Standardgalvanized steel framealuminumindustrial
Add to favorites
Compare this product
Characteristics
- Material
- steel, galvanized steel frame, aluminum
- Options
- industrial, mobile, temporary, quick set-up, with frame, flame-retardant
- Width
5 m, 20 m
(16'04" , 65'07" )- Height
3.5 m, 9 m
(11'05" , 29'06" )
Description
Overview
The advantages of the offer
Areas of usage
Construction and compliance
Roof
Proposed lighting
Periphery
Canvas
Steel tray
Openings
Pedestrian access
Material handling equipment and trucks
Additional equipment (examples)
Technical characteristics / specifications
- Quickly create additional storage spaces adapted to industrial, retail distribution and community needs.
- Scalable, relocatable modular solution to maximise usable storage volume.
- Delivered and installed rapidly to reduce operational disruption.
The advantages of the offer
- Speed: Short assembly time; equipment delivered turnkey in less than 20 days.
- Flexibility: Configurable and upgradable to follow changing operational requirements.
- Economics: Rental model aligns cost with activity levels for optimized CAPEX/OPEX balance.
- Eco-designed: Construction minimises material use and favours reusable components.
Areas of usage
- Outdoor storage: Pallets, packaging, materials or products; can be fully open or partially enclosed.
- Loading/unloading areas: Merchants, buffer zones and cross-docking operations.
- Recovery and recycling: Sorting operations, handling equipment or large containers; can be installed on concrete pads or anchored to walls.
- Community use: Temporary courtyard or site accommodation during construction works.
Construction and compliance
- No foundations required in standard configuration: typically built on compacted soil or concrete pads.
- Can be freestanding, attached to existing buildings, or linked to form extended covered areas.
- Fast delivery and assembly enabled by prefabricated frame and cladding systems.
- Complies with EF/NF 13782 standard and other applicable building and industrial regulations.
Roof
- Flexible PVC composite on 620 g/m² polyester support, translucent white colour.
- Anti-UV, anti-crypto, anti-dust double-sided coating.
- M2 fire resistance. Roof-edge tension bars for membrane stability.
Proposed lighting
- LED
- Chandelier
- Neon
- Emergency/safety lighting
Periphery
Canvas
- PVC composite on 590 g/m² polyester, solid colour or striped options.
- Anti-UV, anti-crypto, anti-dust double-sided coating.
- M2 fire resistance.
Steel tray
- Grey galvanised lacquer finish.
- Optional false gable in flexible PVC composite fabric on white 650 g/m² polyester.
Openings
Pedestrian access
- Door or panic door options.
- Single or double leaf variants.
- Automatic glazed door available.
Material handling equipment and trucks
- Lift-up canvas panel.
- Sliding fabric curtain.
- Double-leaf sliding gate.
Additional equipment (examples)
- Pole protection to prevent collisions with handling equipment.
- Rainwater collection systems and twin channels for connections to buildings.
- Double canvas roof (second skin) to reduce condensation and thermal load.
- Adaptable lighting solutions (ambient, industrial, safety) with LED options.
- Water recovery equipment: guttering, junction valleys, drip trays for watertight modular structures.
- Cladding guards and post guards for wall and pole protection.
Technical characteristics / specifications
- Coverage: from 5 to 20 metres.
- Length: delivered in multiples of 5 metres.
- Wall plate height: from 3 to 5 metres.
- Roofing height: from 3.50 to 9 metres.
- Anchorage to ground: plates fixed by concrete piles or pegs as required.
- Framework: aluminium or steel profiles.
- Roof fabric: PVC composite on 620 g/m² polyester (translucent white) — anti-UV, anti-crypto, anti-dust double-sided coating, M2 fire resistance.
- Periphery canvas: PVC composite on 590 g/m² polyester (solid or striped) — anti-UV, anti-crypto, anti-dust double-sided coating, M2 fire resistance.
- Optional false gable: flexible PVC composite fabric on white 650 g/m² polyester.
- Opening options: pedestrian doors (including panic and automatic glazed), lift-up panels, sliding fabric curtains, double-leaf sliding gates.
