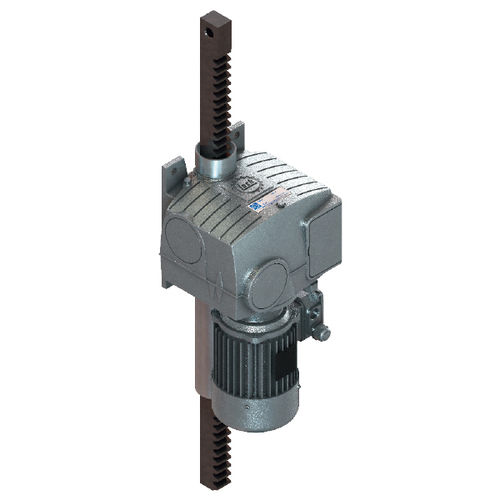

Linear drive system EZW 64

linear drive system
linear drive system
linear drive system
Add to favorites
Compare this product


Characteristics

Type
linear

Description

Robust, zero-maintenance, uncomplicated: The cost-effective and reliable alternative to hydraulic and pneumatic solutions. Originally developed for ventilation applications in greenhouses, and built very robustly indeed, this drive unit is resistant to extremely dirty environments, high humidity levels and severe temperature fluctuations. For many years, they have been in service in the harshest of industrial environments: malting houses, cement processing machinery, industrial furnaces and in the broadest range of other applications conceivable where local spot loads have to be moved safely and reliably. Installed precision END 20 gear limit switch (UL + CSA), infinitely variable and with optional PAR 06 position repeater for intermediate positions. Adjusting drive for pulling and pushing movements. Cast housing with self-locking double worm gear unit and gear rack. For traction or compression loadings. Quality motors, multi-range voltage (IEC 38) for 50 Hz (400 V 3~/230 V 1~). IP 55, TH.Cl.F, S3 - 40 %, special motors on request. Standard stroke lengths H = 600 mm, = 800 mm, =1000 mm, = 1200 mm, etc. For use in temperature range of -5°C to +60°C. During power failures, emergency operation possible using power screwdriver. minimum order quantity 5 pcs

Catalogs

No catalogs are available for this product.

See all of Lock Antriebstechnik GmbH‘s catalogs
