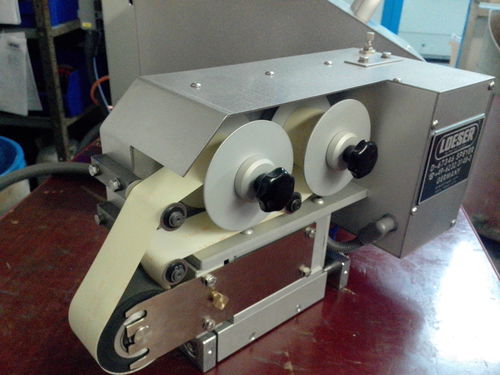

Surfacing super-finishing machine Type SF 106

lappingfinishingsteel

for finest finishing of cylindrical workpieces •Device built for the operation with lapping and micro finishing films up to 50 mm belt width •can be mounted on a lathe •Pressure of contact roll pneumatically and precisely adjustable •Cross oscillation infinitely variable from 0 - 3,000 strokes per minute •Stroke of oscillation 3 mm standard •Manually centering of the film •Film advance variable from 1 - 26 cm/min. •Main voltage 230 Volt •Air pressure 6 bar •Pressure max. 25 kp Accessories: 1 contact roll complete with axle and bearing hardness can be chosen: 40, 60, 80 and 95° Shore Device completely ready for use, including electrical equipment, with fixture for steel holder, without coolant device Ultra fine surface finishing of Ra 0,002 - Ra 0,06 µm - LOESER offers Superfinish attachements and machines. Honing with superfine abrasive and oscillation up to 3000 cycles per minute.
