metal sheet grinding machine / for tubes / NC / PLC-controlled
FS 386

{{requestButtons}}

Characteristics

  • Applications:

    for metal sheets, for tubes

  • Control type:

    NC, PLC-controlled

  • Other characteristics:

    high-performance, wet, lapping, variable-speed, multiple-disc, horizontal

Description

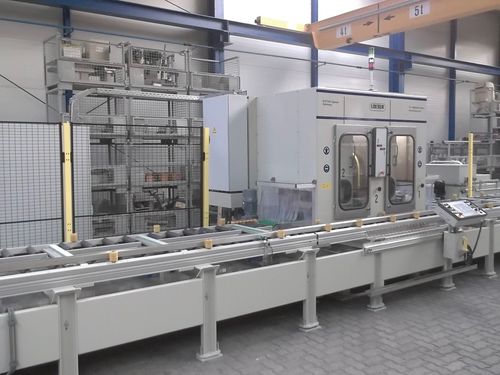

Characteristics of the flat grinding model FS 386

Workpiece dimension: width 150 mm x height 150 mm and any length

Special conveyors for parts which are not flat like door plates

Belt grinding main drive 7.5 kW / 10 HP

Pressure controlled grinding head for constant stock removal

Belt tension by adjustable pneumatic cylinder

Belt dimension 150 mm wide by 2500 mm length

Workpiece transport by frequency driven belt conveyor

Infeed and Outfeed by roller guide

Optional handling system with return conveyor for automated operation

Buffing stations with angle adjustment

Buffing pressure controlled with wear compensation

Wax system with solid or liquid compound feeder
