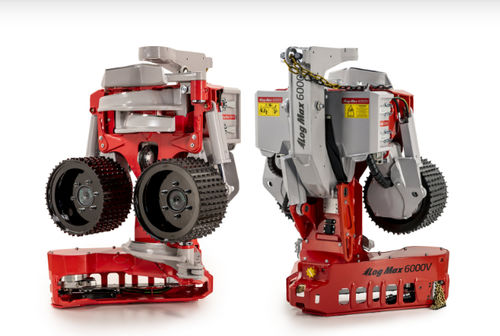

Harvester head 6000V

Log Max 6000V is a versatile head, which has a wide range of applications, mainly focused on final-cut. The head is powerful and fast with excellent length measurement results. FEATURES What makes Log Max 6000V your best choice Improved length measurement To offer the best measurement results, we’ve made some changes in the length measurement function. We have updated the construction of the measuring wheel cylinder, the hydraulic circuit and reinforced the measuring wheel arm and its attachment. We also have a completely new measuring wheel unit including a bigger measuring wheel. Altogether, the changes will allow the measuring wheel to follow the contour of the stem even better and provide the best measurement result. Reinforced frame To increase durability and reduce the risk of cracks in the frame, we have created a reinforced attachment for the upper delimbing knife. The frame is reinforced at the mainline, where the upper delimbing knife slides on the frame to increase durability and extend its life span. An impressive saw unit True-Cut is our smartest and fastest saw and we recommend you choose True-cut 318 that features automatic chain tensioning. The integrated valving solution continuously senses the motor speed and adjusts the saw bar accordingly, the True-Cut maintains an almost constant chain speed of 40 m/s throughout the cutting cycle. The True-Cut is optimized at the factory and should not need any further setting changes in the field. For True-Cut to work, a minimum flow of 200l/min and a minimum pressure of 250 bar is required. Increased tilt angle The head has a new, increased tilt angle of 5°.
