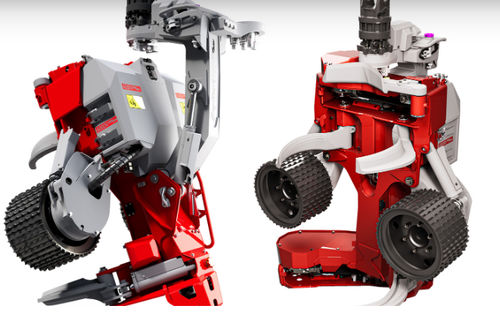

Harvester head 6000VTS

Log Max 6000V Top Saw is well-suited for both wheeled and tracked harvesters. With the Top Saw, you can maximize the timber yield from every log, and the new function, Tilt Control, enables you to place the head at any desired tilt angle. 6000V Top Saw will be available on the market during Q1 2026. FEATURES What makes Log Max 6000V Top Saw your best choice Tilt Control The new Tilt Control system enables you to place the head at any desired tilt angle. Tilt Control comes as standard and the valve for this function is mounted below the existing tilt valve on the left block. Tilt Control is a game changer when processing heavily limbed trees or when working in steep terrain. OPTIMIZED GEOMETRY AND DESIGN OF THE SAW BOX The saw box has been redesigned and extended to accommodate saw bars up to 90 cm in length, a new root protection plate providing enhanced protection to the chain against roots and enables easier cutting of larger trees with a maximum diameter of 78,4 cm (30.9”). Furthermore, the footprint of the saw box has been reduced, making it particularly advantageous in snowy conditions. OUTSTANDING LENGTH MEASUREMENT The length measurement function has been significantly improved to enhance accuracy. Changes include redesigning the measure wheel cylinder, updating the hydraulic circuit, reinforcing the measuring wheel arm and attachment, the measuring wheel is larger in diameter. These enhancements allow the measuring wheel to precisely follow the stem’s contour, resulting in superior measurement results. An impressive saw unit The Log Max 6000V Top Saw is equiped with two 318 MK2 with 30cc motors.
