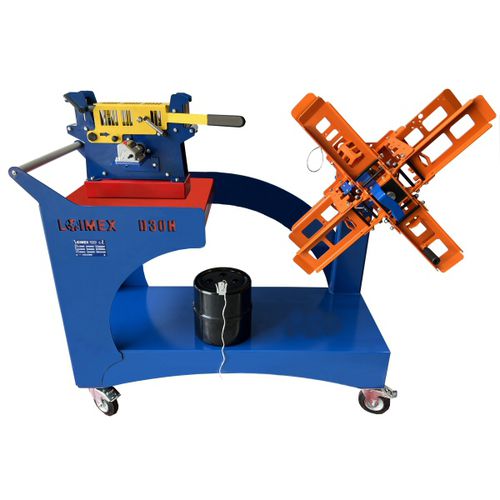

Cable coiler D30H

manualwith length measuring devicemobile

Manual cable winding machine, type D30H, they are only used to make rolls, either from original factory reels, housed in a reel-holder rack or on reel-holder jacks. Range of application With the D30H cable winding machines it is possible to make rolls with all types of cables with a diameter up to 40 mm, depending on the type of measured installed. Features • Mobile frame with wheels and brake. • Mechanical meter counter M410 or M410/2 • Electronic meter with optional MID certificate. • Coiler device to make coils RD30H - 800 Ø. • Available for this type of measurers MH30, M20, M20/S, M40 y M40/S • String deposit to allow the tying of the coils. - Measuring head : MH30, M20, M40 - Ø exterior mm : 800 - Ø maximum cone mm : 420 - Ø minimum cone mm : 350 - width mm : 200 - Maximun weight kg. : 150 - Dimensions : 1.500x510x1.300
