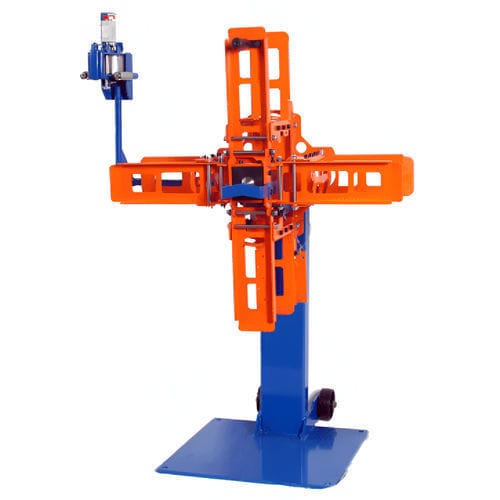

Cable coiler R41H

manualwith length measuring device

Manual cable winding device type R41, brand LOIMEX, to measure and make coils of cable with the coiler unit, which the core and front crosspiece being articulated for the quick extraction of the cable, due to the decrease of the inside core and the front blades being completely opened. Range of application To wind coils of cable with a maximum weight of 150 kg. For measuring electric wires, cables, cords, etc. from 2 to 30 mm Ø Features • Sturdy frame for stationary mounting • Two wheels to transport easily the machine • Heavy base plate. • Coiling shaft mounted in double ball bearings. • Coiler RD30H type, with a 800 mm exterior diameter • Two sizes for the core 350 & 420 mm. • Useful inside width of 200 mm. - Cable measurer Ø mm. : 2-30 Ø mm - Maximum capacity : 150 Kg - Dimensions : 800x680x1.300 mm - Weight Kg : 75
