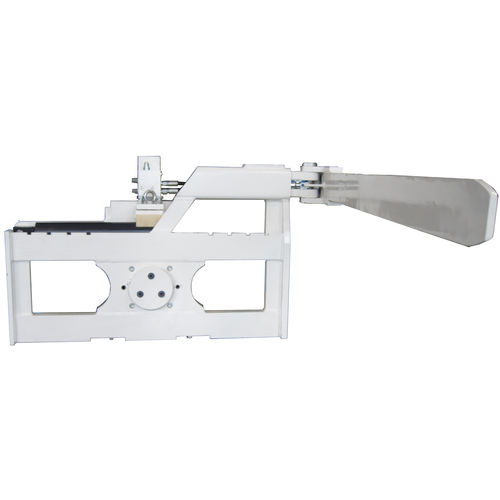

Load rotator XZQ -B/C G-series
hydraulic180°

load rotator
load rotator
load rotator
load rotator
Add to favorites
Compare this product


Characteristics

Product applications
load
Operation
hydraulic
Other caracteristics
180°

Description

Used to rotate load hydraulically. Applied in industries that need to turn its load or pour its load’s con-tent. Commonly used in machining companies or recycling industries to dispose scrap petrochemical and pharmaceutical industries for pouring of contents from container. Equipped with sideshifting function, it enables forklift to move its load from side to side to ease adjustment, stacking, loading and un-loading of goods. - - Capacity: 2500Kg/3500Kg - - Mounting Class: II/III - - Carriage Width: 1040mm/1230mm - - Lateral Fork Size: 1250x100x50 - - Rotating Degree: 180° - - Min. Truck Carriage Width: 800mm - - Vertical Center of Gravity: 258mm – 419mm - - Weight: 220Kg – 385Kg - - Effective Thickness: 162mm/192mm - - Horizontal Center of Gravity: 85mm – 212mm Recommend Hydraulic Flow: 40L/min – 120L/min Pressure: 160 Bar Rotating Speed: 6r/min@60L/min Rotating Torque: 9000N﹒m@160Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 1 additional hydraulic circuit required 3. Without forks _special forks to be added upon request * Other technical details available upon request
