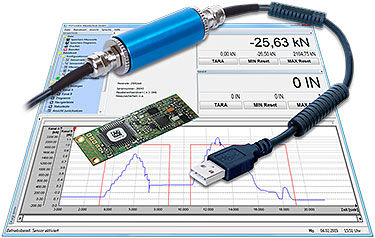

USB interface LCV-USB3

analog

USB-Sensor Interface with freely available Configuration and Evaluation Software VS3. The Evaluation and Excitation of the connected Sensor occurs via the USB Interface of the PC. Sensors with Output Signals of mV/V, ±5V, ±10V, 0/4 … 20 mA, 10 ±10 mA or 12 ±8 mA are suitable for the Connection. Through the Measuring Rate of up to 5000/s, high-dynamic Measurements are realizable. This Measuring Amplifier is also very suitable for rough Industry Applications by the high Level of Protection IP67 of the Housing, It is also available as a Board without Housing which allows direct Integration in many Sensors. Performance Features • Supply of the measuring system via PC USB port • Fast measurement of up to 5000 meas./s • Up to 16 bit resolution • Input ranges for mV, V and mA • Digitally switchable analogue input filter • Integrable in large sensors as board • Adjustment and control signal switch via software • Level of protection IP67 Application • Research and development • Process measuring and control technology • Automotive engineering • Energy and environmental technology • Mechanical engineering The sensor interface LCV-USB3 is connected between sensor and PC. In this way, analog sensor signals will be digitized with up to 16 bit resolution. By the measuring rate of 5000 measurements/s per measuring channel, high-dynamic measurements can be achieved. The measured values are transferred to a PC via the USB interface and visualized by means of software. If a control signal is integrated in the sensor, an automatic adjustment can be carried out and checked at any time (measuring chain monitoring).
